LINED BALL VALVE
Lined Ball Valve Atomac
Atomac Lined Ball

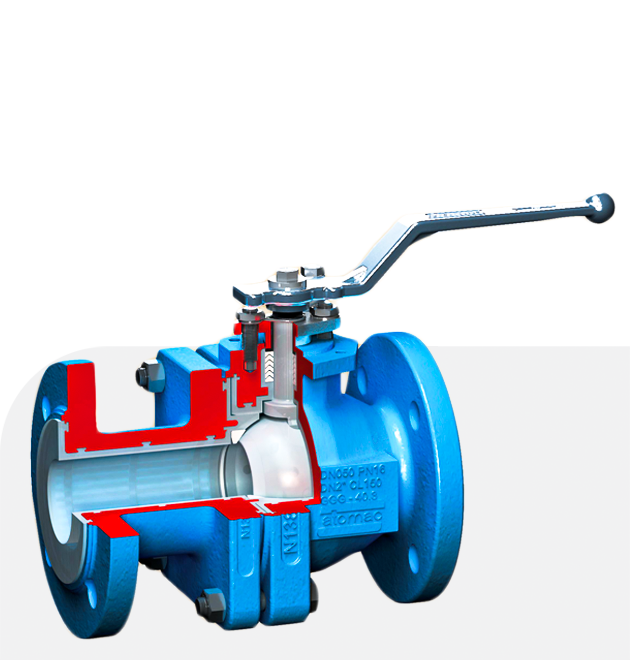

Valve AKH2.2
Atomac AKH2.2 Lined Full Port Ball Valve is a two-piece lined ball valve which offers high safety factors, high stability, rigidity and eliminates a potential leak path.
Features
- Low frictional coefficients resulting in low operating torques
- Positive shut-off across the pressure range
- Reduction of stem side loads, eliminating potential leaks to atmosphere through the valve gland
- A real anti blow-out stem design that offers increased safety – each lined ball valve has its anti-static device
Detail Specification
| Size Range | DN 15 - DN 100 |
| Pressure Class Range | DIN PN 10 -16, ASME Class 150 |
| Seating Material | PTFE, PTFE-glass-reinforced, PTFE-conductive |
Atomac Lined Ball Valve

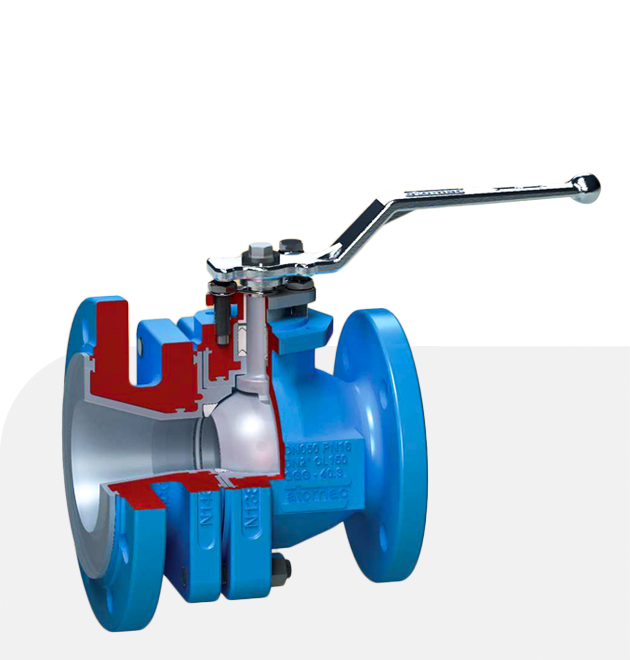

Atomac Lined Ball Valve Fully Lined Tank Drain
Atomac Lined Ball Valve – Fully-Lined Tank Drain has the same characteristics as former mentioned lined ball valves included high corrosion resistant liners either FEP or PFA, full ports, anti blow-out stem, anti-static design, actuator mounting flanges according DIN EN ISO 5211 and a long term protection against external leakage to the atmosphere.
Industries
- Chemicals Basic
- Chemicals Specialty
- Petrochemicals
- Oil & Gas
Detail Specification
| Size Range | 1" - 8" |
| Pressure Class Range | Class 150 |
| Seating Material | PTFE, PTFE-glass-reinforced, PTFE-conductive |
Atomac Lined Ball Valve
Atomac Lined Ball Valve Fully Lined Tank Drain
Atomac Lined Ball Valve – Fully-Lined Tank Drain has the same characteristics as former mentioned lined ball valves included high corrosion resistant liners either FEP or PFA, full ports, anti blow-out stem, anti-static design, actuator mounting flanges according DIN EN ISO 5211 and a long term protection against external leakage to the atmosphere.
Industries
- Chemicals Basic
- Chemicals Specialty
- Petrochemicals
- Oil & Gas
Detail Specification
| Size Range | 1" - 8" |
| Pressure Class Range | Class 150 |
| Seating Material | PTFE, PTFE-glass-reinforced, PTFE-conductive |
Lined Ball Valve Atomac
Atomac Lined Ball
Valve – AMP3
The compact design of the Atomac AMP3 three-way lined ball valve permits use in corrosive diverter applications with space constraints.
Features
- Lower capital cost in difficult services than alloy valves, with equal or superior corrosion resistance
- Reduced plant operating costs made possible by high-flow capacity
- Broad application versatility for a wide variety of 90° or 180° flow
- Improved efficiency due to floating ball seat design which ensures bubble-tight shutoff across the pressure range
Detail Specification
| Size Range | 1" - 6" |
| Pressure Class Range | Class 150 |
| Seating Material | PTFE, PTFE-glass-reinforced, PTFE-conductive |
Atomac Lined Ball Valve
Atomac Lined Ball
Valve – AKH2
Atomac designed to reduce energy and pumping costs, the Atomac AKH2 two-piece, full-port design minimizes pressure losses and increases flow capacity.
Features
- Atomac AKH2 minimized downtime and maintenance from long-life seats and large stem sealing area
- Reduced fugitive emissions made possible by reduction of stem side loads, eliminating potential valve gland leaks
- Increased plant and personnel safety assured by anti-blowout stem and anti-static design
Detail Specification
| Size Range | DN 15 - DN 350 (on request) |
| Pressure Class Range | PN 10, PN 16 |
| Seating Material | PTFE, PTFE-glass-reinforced, PTFE-conductive |
| Supply Media | Air, Natural Gas, Nitrogen |
Atomac Lined Ball Valve
Atomac Lined Ball
Valve – AKH2
Atomac designed to reduce energy and pumping costs, the Atomac AKH2 two-piece, full-port design minimizes pressure losses and increases flow capacity.
Features
- Atomac AKH2 minimized downtime and maintenance from long-life seats and large stem sealing area
- Reduced fugitive emissions made possible by reduction of stem side loads, eliminating potential valve gland leaks
- Increased plant and personnel safety assured by anti-blowout stem and anti-static design
Detail Specification
| Size Range | DN 15 - DN 350 (on request) |
| Pressure Class Range | PN 10, PN 16 |
| Seating Material | PTFE, PTFE-glass-reinforced, PTFE-conductive |
| Supply Media | Air, Natural Gas, Nitrogen |
Lined Ball Valve Atomac
Atomac Lined Ball
Valve – AKH2A
Atomac AKH2A is a lined full port ball Valve, short pattern that offers the same benefits as the Atomac AKH2A lined ball valve at reduced space and weight. It was designed per ASME B16.5 Class 150 flange dimensions and ASME B16.10 face-to-face dimensions.
Other Atomac Lined Ball Valve
- Atomac Lined Ball Valve AtoStar AS1
- Atomac Lined Ball Valve AtoStar AS2
- Atomac Lined Ball Valve AtoStar AS3
- Atomac Lined Ball Valve AtoStar AS4
- Atomac Lined Ball Valve AtoStar AS5
- Atomac Lined Ball Valve AtoStar AS6
Detail Specification
| Size Range | 1" - 6" |
| Pressure Class Range | Class 150 |
| Seating Material | PTFE, PTFE-glass-reinforced, PTFE-conductive |
Atomac Lined Ball Valve
Atomac Lined Ball
Valve – AKH7 – KP
Atomac AKH7-KP Lined Ball Valve is engineered exclusively for glass pipe systems. It is available with socket/ball or plane ends according to DIN/ISO 3587 and 4704. For flange/glass end connections.
Features
- Long service life and high corrosion resistance via FEP- or PFA-molded fluorocarbon resin liners (others available on request)
- Handling of highly viscous fluids or process applications with high purity requirements enabled by liners’ inert, non-stick properties
Detail Specification
| Size Range | DN 25 - DN 50 |
| Pressure Class Range | PN 10, PN 16 |
| Seating Material | PTFE, PTFE-glass-reinforced, PTFE-conductive |
Atomac Lined Ball Valve
Atomac Lined Ball
Valve – AKH7 – KP
Atomac AKH7-KP Lined Ball Valve is engineered exclusively for glass pipe systems. It is available with socket/ball or plane ends according to DIN/ISO 3587 and 4704. For flange/glass end connections.
Features
- Long service life and high corrosion resistance via FEP- or PFA-molded fluorocarbon resin liners (others available on request)
- Handling of highly viscous fluids or process applications with high purity requirements enabled by liners’ inert, non-stick properties
Detail Specification
| Size Range | DN 25 - DN 50 |
| Pressure Class Range | PN 10, PN 16 |
| Seating Material | PTFE, PTFE-glass-reinforced, PTFE-conductive |
Lined Ball Valve Atomac
Atomac Lined Ball
Valve – AKH5
Atomac AKH5 full-port, ceramic-lined valves are recommended when nothing else will work in applications with abrasive slurries, corrosives and services.
Features
- Increased uptime from minimal cavity space, which significantly reduces retention of line media and product contamination
- Reduced energy and pumping costs due to full port design, which minimizes pressure loss and increases flow capacity
- Shutoff to ANSI B16.104 Class IV or DIN 3230, part 3, BN leak rate 3
Detail Specification
| Size Range | DN 25 - DN 150 |
| Pressure Class Range | DIN PN 16 |
| Seating Material | Ceramic |
Atomac Lined Ball Valve
Atomac Lined Ball
Valve – AKH8
Atomac AKH8 Lined Ball Valve is a full-port, mono-block ball valve that improves sticky, adhesive and highly viscous fluid applications, particularly in high cycling requirements that can cause deterioration in floating ball design valves.
Features
- Reduced downtime and maintenance enabled by the metal-to-metal body joint, which absorbs destructive pipe vibrations and negative effects of thermal cycling
- Greater efficiency provided by larger diameter seats and integral retention lip, which minimize flow turbulence and enhance seat stability
Detail Specification
| Size Range | 1" - 6" |
| Pressure Class Range | PN 10, PN 16 |
| Seating Material | PTFE, PTFE-glass-reinforced, PTFE-conductive |
Atomac Lined Ball Valve
Atomac Lined Ball
Valve – AKH8
Atomac AKH8 Lined Ball Valve is a full-port, mono-block ball valve that improves sticky, adhesive and highly viscous fluid applications, particularly in high cycling requirements that can cause deterioration in floating ball design valves.
Features
- Reduced downtime and maintenance enabled by the metal-to-metal body joint, which absorbs destructive pipe vibrations and negative effects of thermal cycling
- Greater efficiency provided by larger diameter seats and integral retention lip, which minimize flow turbulence and enhance seat stability
Detail Specification
| Size Range | 1" - 6" |
| Pressure Class Range | PN 10, PN 16 |
| Seating Material | PTFE, PTFE-glass-reinforced, PTFE-conductive |
