Butterfly Valve

ACE VALVE
CONCENTRIC

Ace Butterfly Valve, Jual Valve Ace Butterfly, Distributor Valve, Ace Butterfly Stockist Valve, Ace Butterfly Valve Indonesia, Ace Concentric Butterfly Valve
Download

Ace Butterfly Valve

Ace Concentric Butterfly Valve

The Concentric Butterfly Valves of concentric butterfly valve feature is a symmetrical disc design, ensuring favorable flow-characteristics, and low pressure-drop.

Type Numbering System
  • AV-CWR Concentric WAFER type Rubber lined Butterfly Valves
  • AV-CSR Concentric SEMI-LUG type Rubber lined Butterfly Valves
  • AV-CLR Concentric LUG type Rubber lined Butterfly Valves
  • AV-CFR Concentric FLANGE type Rubber lined Butterfly Valves
  • AV-MHW High-performance WAFER type Metal seat Butterfly valves
Size DN50mm (2 inch) ~ DN3000mm (120 inch)
Pressure Rating Up to 16bar
Aplicable Flange KS/JIS 5K, 10K, 16K ANSI | B 16.1 Class 125LB | ANSI B 16.5 Class 150LB | BS 4504 PN 6, PN10, PN16 | DIN 2501 PN 6, PN10, PN16 | ISO 2084 PN 6, PN10, PN16
Temp. Rating -20C° ~ +200C°

Ace Butterfly Valve

Ace High-Performance Butterfly Valve

High performance butterfly valves are widely used in product and chemical tankers, offshore / on shore to NACE MR0175, oil and gas field chemical, petrochemical plants, and high pressure piping systems.

Type Numbering System
  • AV-HWR High-performance WAFER type Rubber seat Butterfly valves
  • AV-HSR High-performance SEMI-LUG type Rubber seat Butterfly valves
  • AV-HLR High-performance LUG type Rubber seat Butterfly valves
  • AV-HFR High-performance FLANGE type Rubber seat Butterfly valves
  • AV-HWT High-performance WAFER type Teflon seat Butterfly valves
Size DN50mm (2 inch) ~ DN1200mm (48 inch)
Pressure Rating 0bar ~ 30bar
Aplicable Flange KS/JIS 5K, 10K, 16K, 20K, 30K | ANSI B 16.5 Class 150LB, Class 300LB | BS 4504 PN6, PN10, PN16, PN25 | ISO 2084 PN6, PN10, PN16, PN25 | DIN 2501 PN6, PN10, PN16, PN25
Temp. Rating -20C° ~ +250C° (Soft Seat) & -100C° ~ +400C° (Metal seat)

ACE VALVE
HIGH PERFORMANCE

Ace Butterfly Valve, Jual Valve Ace Butterfly, Distributor Valve, Ace Butterfly Stockist Valve, Ace Butterfly Valve Indonesia, Ace High-Performance Butterfly Valve
Download

Ace Butterfly Valve

Ace High-Performance
Butterfly Valve

High performance butterfly valves are widely used in product and chemical tankers, offshore / on shore to NACE MR0175, oil and gas field chemical, petrochemical plants, and high pressure piping systems.

Type Numbering System
  • AV-HWR High-performance WAFER type Rubber seat Butterfly valves
  • AV-HSR High-performance SEMI-LUG type Rubber seat Butterfly valves
  • AV-HLR High-performance LUG type Rubber seat Butterfly valves
  • AV-HFR High-performance FLANGE type Rubber seat Butterfly valves
  • AV-HWT High-performance WAFER type Teflon seat Butterfly valves
Size DN50mm (2 inch) ~ DN1200mm (48 inch)
Pressure Rating 0bar ~ 30bar
Aplicable Flange KS/JIS 5K, 10K, 16K, 20K, 30K | ANSI B 16.5 Class 150LB, Class 300LB | BS 4504 PN6, PN10, PN16, PN25 | ISO 2084 PN6, PN10, PN16, PN25 | DIN 2501 PN6, PN10, PN16, PN25
Temp. Rating -20C° ~ +250C° (Soft Seat) & -100C° ~ +400C° (Metal seat)

ACE VALVE
HIGH PERFORMANCE

Schroedahl Valve, Jual Valve Schroedahl, Distributor Valve, Schroedahl Stockist Valve, Schroedahl Indonesia, Schroedahl Pump Protection Valve, Schroedahl Type TDM Pump Protection Valve
Download

ACE VALVE
DOUBLE ECCENTRIC

Ace Butterfly Valve, Jual Valve Ace Butterfly, Distributor Valve, Ace Butterfly Stockist Valve, Ace Butterfly Valve Indonesia, Ace Double Eccentric Cargo Oil Butterfly Valve
Download

Ace Butterfly Valve

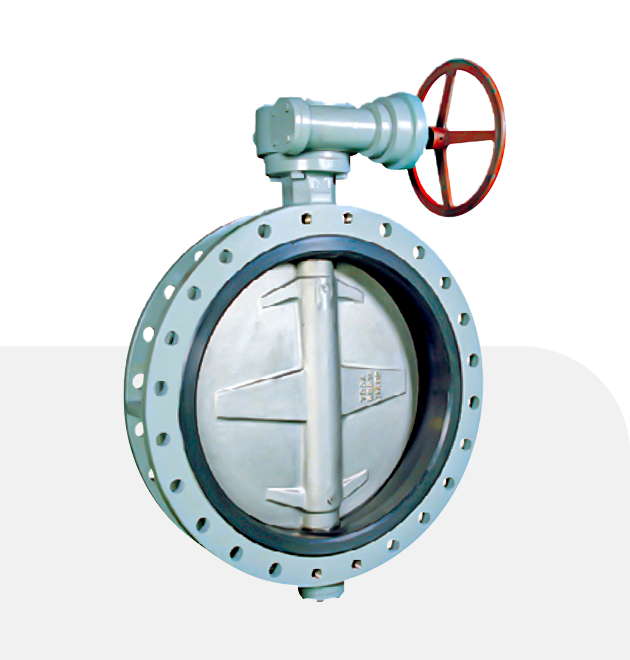

Ace Double Eccentric Cargo Oil Butterfly Valve

Ace Valve’s rubber seated double eccentric butterfly valve feature is a heavy loaded design for high-pressure and high flow-rate applications.

Type Numbering System
  • AV-OSR Double Eccentric SEMI-LUG type Butterfly valves
  • AV-OLR Double Eccentric LUG type Butterfly valves
  • AV-OFR Double Eccentric FLANGE type Butterfly valves
  • AV-FHL High-performance LUG type Fire safe seat Butterfly valves
  • AV-FHF High-performance FLANGE type Fire safe seat Butterfly valves
  • Ace Butterfly Valve CRB Series
Size DN50mm (2 inch) ~ DN1000mm (40 inch)
Pressure Rating up to 30bar
Aplicable Flange KS/JIS 5K, 10K, 16K, 20K, 30K | ANSI B 16.5 Class 150LB, 300LB | BS 4504 PN6, PN10, PN16, PN25 | ISO 2084 PN6, PN10, PN16, PN25 | DIN 2501 PN6, PN10, PN16, PN25
Temp. Rating -20C° ~ +250C°

Ace Butterfly Valve

Ace Eccentric Disc Seated Butterfly Valve

With a wide range of production, up to 4,000mm in size, the eccentric butterfly valves are developed for applications in waterworks, power plants, desalination plants and other similar industrial plants.

Type Numbering System
  • AV-EWR Disc Sealed Eccentric WAFER type Butterfly valves
  • AV-EFR Disc Sealed Eccentric FLANGE type Butterfly valves
  • AV-FHW High-performance WAFER type Fire safe seat Butterfly valves
  • AV-FHS High-performance SEMI-LUG type Fire safe seat Butterfly valves
Size 80A (3inch) ~ 4000A (160inch)
Pressure Rating 0 bar ~ 40 bar
Aplicable Flange KS/JIS 10K, 16K, 20K, 30K, 42K | ANSI B 16.1 Class 125LB, 250LB | ANSI B 16.5 Class 150LB, 300LB | AWWA C207 Class D, E | BS 4504, PN6, PN10, PN16, PN25, PN40 | ISO 2084, PN6, PN10, PN16, PN25, PN40 | DIN 2501, PN6, PN10, PN16, PN25, PN40
Temp. Rating -20C° ~ +200C°

ACE VALVE
DISC SEATED

Ace Butterfly Valve, Jual Valve Ace Butterfly, Distributor Valve, Ace Butterfly Stockist Valve, Ace Butterfly Valve Indonesia, Ace Eccentric Disc Seated Butterfly Valve
Download

Ace Butterfly Valve

Ace Eccentric Disc Seated Butterfly Valve

With a wide range of production, up to 4,000mm in size, the eccentric butterfly valves are developed for applications in waterworks, power plants, desalination plants and other similar industrial plants.

Type Numbering System
  • AV-EWR Disc Sealed Eccentric WAFER type Butterfly valves
  • AV-EFR Disc Sealed Eccentric FLANGE type Butterfly valves
  • AV-FHW High-performance WAFER type Fire safe seat Butterfly valves
  • AV-FHS High-performance SEMI-LUG type Fire safe seat Butterfly valves
Size 80A (3inch) ~ 4000A (160inch)
Pressure Rating 0 bar ~ 40 bar
Aplicable Flange KS/JIS 10K, 16K, 20K, 30K, 42K | ANSI B 16.1 Class 125LB, 250LB | ANSI B 16.5 Class 150LB, 300LB | AWWA C207 Class D, E | BS 4504, PN6, PN10, PN16, PN25, PN40 | ISO 2084, PN6, PN10, PN16, PN25, PN40 | DIN 2501, PN6, PN10, PN16, PN25, PN40
Temp. Rating -20C° ~ +200C°

ACE VALVE
DISC SEATED

Ace Butterfly Valve, Jual Valve Ace Butterfly, Distributor Valve, Ace Butterfly Stockist Valve, Ace Butterfly Valve Indonesia, Ace Eccentric Disc Seated Butterfly Valve
Download

ACE VALVE
TRIPLE ECCENTRIC

Ace Butterfly Valve, Jual Valve Ace Butterfly, Distributor Valve, Ace Butterfly Stockist Valve, Ace Butterfly Valve Indonesia, Ace Triple Eccentric Metal Seated Butterfly Valve
Download

Ace Butterfly Valve

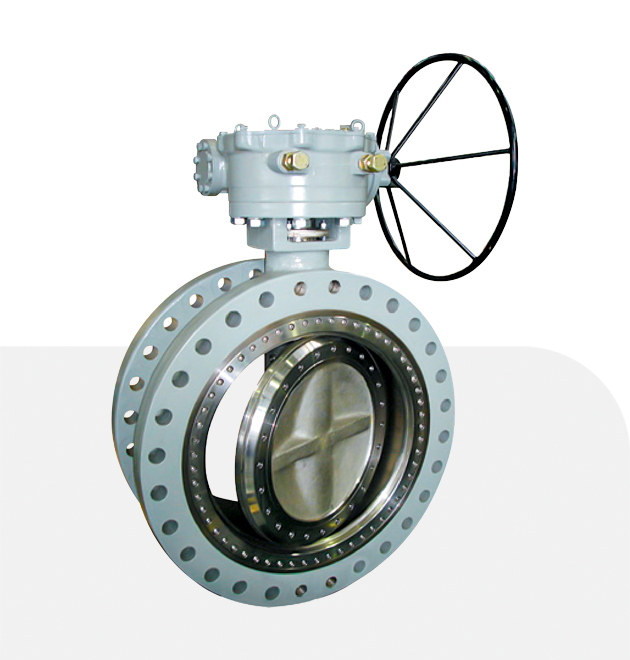

Ace Triple Eccentric Metal Seated Butterfly Valve

Triple eccentric metal seated butterfly valves are widely used in plant and high pressure piping system.

Type Numbering System
  • AV-TMW Triple Eccentric wafer type metal seated butterfly valves
  • AV-TML Triple Eccentric lug type metal seated butterfly valves
  • AV-TMF Triple Eccentric flange type metal seated butterfly valves
  • AV-MHL High-performance LUG type Metal seat Butterfly valves
  • AV-MHF High-performance FLANGE type Metal seat Butterfly valves
  • AV-MHS High-performance SEMI-LUG type Metal seat Butterfly valves
Size 50mm (2inch) ~ 2000mm (80inch)
Working Pressure Max. 6,000psi(400 kg / Cm3)
Aplicable Flange ANSI B 16.5, 16.47, 150LB-300LB-600LB-900LB, 1500LB, 2500LB | KS/JIS 5K, 10K, 16K, 20K, 30K, 40K, 63K | BS 3293, DIN 2501, ISO 7005, PN6, PN10, PN16, PN20, PN25, PN40 | PN50, PN110, PN150, PN260, PN420
Temp. Rating -196C° ~ +815C°
