Safety Valve
Zetkama Safety Valve
Full Lift Safety Valve, Flanged Ends, Angle Form
Zetkama Full-lift angle weight safety valve with flanged ends. This Product is characterized by a high degree of tightness. Zetkama safety Valve 570 may be applied to systems in which the pressure is from 0.1 to 0.7 bar. All valves are designed for vertical installation.
Zetkama Features
- High tightness
- Raised tightness of closure
- Flange dimension according
to PN EN 1092 -1 - Flange dimension according to PN EN1092-2 (depend of body material)
Figure Number
Detail Specification
Material | Grey cast iron |
Nominal pressure | 16,40 bar |
Nominal diameter | 20-150 mm |
Temperature range | -196…+400°C |
Working position | Any |
Zetkama Safety Valve
Full Lift Safety Valve, Flanged Ends, Angle Form

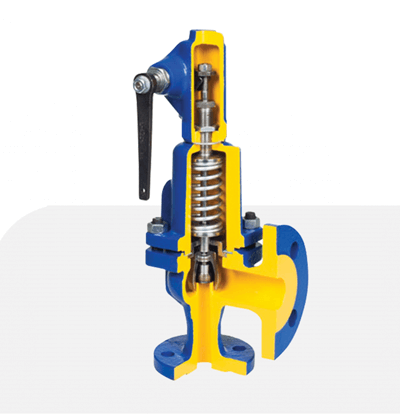

Spring-loaded safety valves do not need to be supplied with energy from outside and are therefore an essential element of safety systems, and their task is to protect equipment/pressure systems (boilers, tanks, pipelines, etc.) against excessive pressure above the set limit.
Zetkama Features
- Quiet work of valve
- High tightness For valve with soft sealing
- Protection of disc sealing surface against a lime scale settling as well as against any small mechanical dirt
Figure Number
Detail Specification
Material | Grey cast iron |
Nominal pressure | 16,40,63,100 bar |
Nominal diameter | 20-400 mm |
Temperature range | -196…+400°C |
Working position | Vertical |
Zetkama Safety Valve
Full Lift Safety Valve, Flanged Ends, Angle Form
Spring-loaded safety valves do not need to be supplied with energy from outside and are therefore an essential element of safety systems, and their task is to protect equipment/pressure systems (boilers, tanks, pipelines, etc.) against excessive pressure above the set limit.
Zetkama Features
- Quiet work of valve
- High tightness For valve with soft sealing
- Protection of disc sealing surface against a lime scale settling as well as against any small mechanical dirt
Figure Number
Detail Specification
Material | Grey cast iron |
Nominal pressure | 16,40,63,100 bar |
Nominal diameter | 20-400 mm |
Temperature range | -196…+400°C |
Working position | Vertical |
Zetkama Safety Valve
Full Lift Safety Valve, Threaded Ends, Angle Form

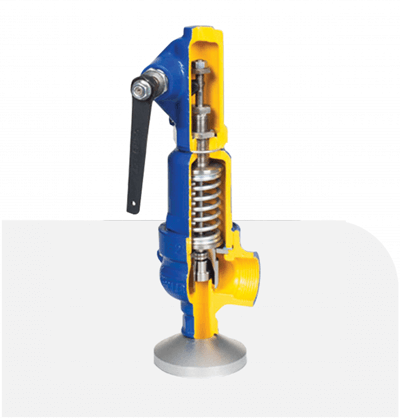

Full-lift angle spring safety valve with threaded ends made of nodular cast iron. Zetkama safety valve fig.775 is available in sizes: DN 20-32. It is used for pressures up to 16 bar, and the maximum temperature is 200°C.
Application
- Steam
- Glycol
- Heating
- Industry
- Drinking Water
- Industrial Water
- Power Engineering
Figure Number
Detail Specification
Material | Nodular cast iron |
Nominal pressure | 16 bar |
Nominal diameter | 20-32 mm |
Temperature range | -10...+200°C |
Working position | Vertical |
Zetkama Safety Valve
Standard Type For Gases and Steam, Sealing Disc EPDM

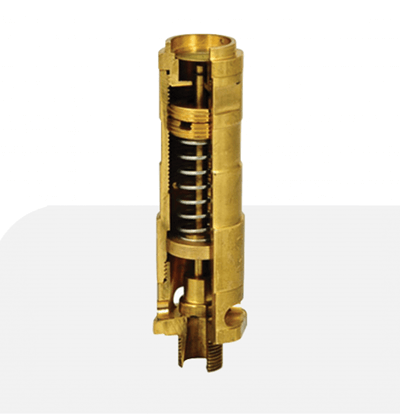

Free-splined spring safety valve with threaded ends made of brass, produced in diameters: DN 10-25, for working pressures up to 25 (depending on size). Zetkama safety valve is characterized by a high degree of tightness. This product for the outflow of which can be carried directly into the environment without harming the users and the environment.
Application
- Neutral fluids
- Compressed air
- Raised tightness of closure
- Refrigeration and air conditioning
Figure Number
Detail Specification
Material | Brass |
Nominal pressure | 25 bar |
Nominal diameter | 10-25 mm |
Temperature range | -30...+120°C |
Working position | Vertical |
Zetkama Safety Valve
Standard Type For Gases and Steam, Sealing Disc EPDM
Free-splined spring safety valve with threaded ends made of brass, produced in diameters: DN 10-25, for working pressures up to 25 (depending on size). Zetkama safety valve is characterized by a high degree of tightness. This product for the outflow of which can be carried directly into the environment without harming the users and the environment.
Application
- Neutral fluids
- Compressed air
- Refrigeration and air conditioning
Figure Number
Detail Specification
Material | Brass |
Nominal pressure | 25 bar |
Nominal diameter | 10-25 mm |
Temperature range | -30...+120°C |
Working position | Vertical |
