Forged Steel Valve
Vogt Forged Steel Valve

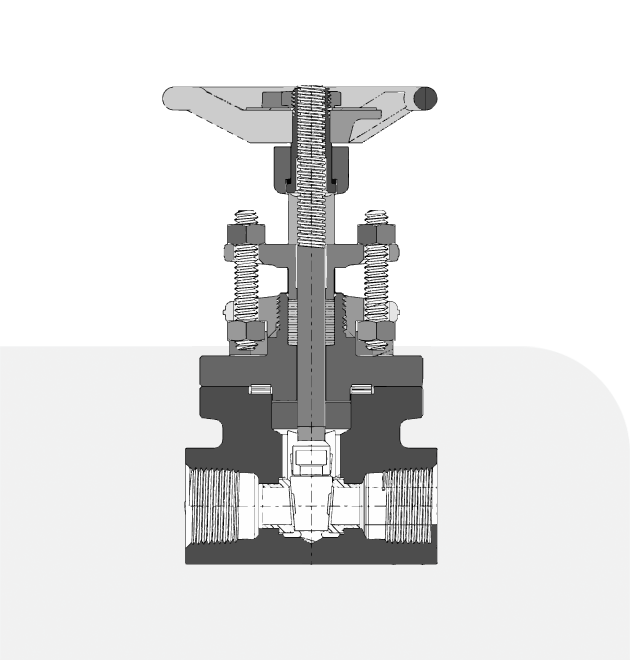

Vogt Gate Valve Forged Steel
Gate valve are designed to operate in a fully open or fully closed position. When open, the media will flow with minimal turbulence and pressure drop through the valve.
Gate Valve Features
- Conventional Port
- Full Port Round
- Spiral Wound Gasket
- Outside Screw & Yoke
Gate Valve Pressure Class
- Forged Steel Gate Valve Class 150
- Forged Steel Gate Valve Class 300
- Forged Steel Gate Valve Class 600
- Forged Steel Gate Valve Class 800
- Forged Steel Gate Valve Class 1500
- Forged Steel Gate Valve Class 2500
Detail Specification
| Size Range | NPS ½"-2" |
| Trim | 13% Cr |
| Body/Bonnet | A105 |
| Connection | Socket Weld |
Vogt Forged Steel Valve
Vogt Y-Pattern Globe Valve Forged Steel
Vogt Y Pattern globe and angle valve lines provide a variety of design variations to fulfill your requirements. Flow characteristics can be determined from the Cv Factors listed.
Globe Valve Features
- Seal Welded Bonnet
- Outside Screw & Yoke
- Removable Yoke
- Operating Mechanism
- Endless Packing Rings
Y Pattern Globe Valve Series
- Y Pattern Globe Valve Series 810
- Y Pattern Globe Valve Series 811
- Y Pattern Globe Valve Series 822
- Y Pattern Globe Valve Series 891
Detail Specification
| Size Range | NPS ½"-2" |
| Trim | 13%Cr |
| Body/Bonnet | A105, F11 CI.2,F22 CI.3 And F91 |
| Connection | Threaded Socket Weld |
Vogt Forged Steel Valve
Vogt Y-Pattern Globe Valve Forged Steel
Vogt Y Pattern globe and angle valve lines provide a variety of design variations to fulfill your requirements. Flow characteristics can be determined from the Cv Factors listed.
Globe Valve Features
- Seal Welded Bonnet
- Outside Screw & Yoke
- Removable Yoke
- Operating Mechanism
- Endless Packing Rings
Y Pattern Globe Valve Series
- Y Pattern Globe Valve Series 810
- Y Pattern Globe Valve Series 811
- Y Pattern Globe Valve Series 822
- Y Pattern Globe Valve Series 891
Detail Specification
| Size Range | NPS ½"-2" |
| Trim | 13%Cr |
| Body/Bonnet | A105, F11 CI.2,F22 CI.3 And F91 |
| Connection | Threaded Socket Weld |
Vogt Forged Steel Valve

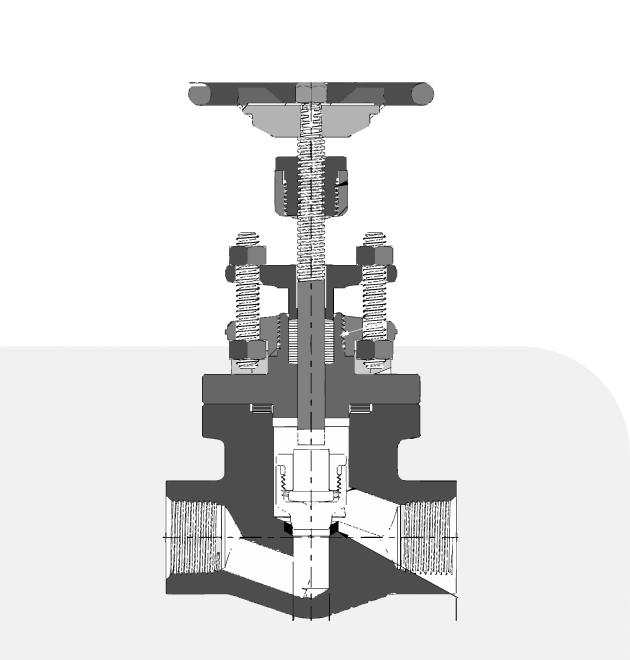

Vogt Globe Valve Forged Steel
Vogt globe and angle valve lines provide a variety of design variations to fulfill your requirements. Flow characteristics can be determined from the Cv Factors listed.
Globe Valve Features
- Round Bolted Bonnet
- Spiral Wound Gasket
- Loose Disc
Globe Valve Pressure Class
- Forged Steel Globe Valve Class 150
- Forged Steel Globe Valve Class 300
- Forged Steel Globe Valve Class 600
- Forged Steel Globe Valve Class 800
- Forged Steel Globe Valve Class 1500
- Forged Steel Globe Valve Class 1690
- Forged Steel Globe Valve Class 2500
Detail Specification
| Size Range | NPS ½"- 2½"" |
| Trim | 13% Cr |
| Body/Bonnet | A105, A350 LF2 and F316/F316L |
| Connection | Socket Weld Threaded/Socket Weld Butt Weld (Sch 40) |
Vogt Forged Steel Valve
Vogt Check Valve Forged Steel
Vogt Check valve are forged from fine-grain steel and are available with threaded, socket weld or flanged ends. Check valve are manufactured to meet a wide variety of
service applications.
Check Valve Features
- Round Bolted Bonnet
- Horizontal Type Piston
Check Valve Pressure Class
- Forged Steel Check Valve Class 150
- Forged Steel Check Valve Class 300
- Forged Steel Check Valve Class 600
- Forged Steel Check Valve Class 800
- Forged Steel Check Valve Class 1500
- Forged Steel Check Valve Class 1690
- Forged Steel Check Valve Class 2500
Detail Specification
| Size Range | NPS ½"-2" |
| Trim | 13Cr-316H |
| Body/Bonnet | A105, A182 F11 and F316/F316L |
| Connection | Threaded Socket Weld Butt Weld |
Vogt Forged Steel Valve
Vogt Check Valve Forged Steel
Vogt Check valve are forged from fine-grain steel and are available with threaded, socket weld or flanged ends. Check valve are manufactured to meet a wide variety of service applications.
Check Valve Features
- Round Bolted Bonnet
- Horizontal Type Piston
Check Valve Pressure Class
- Forged Steel Check Valve Class 150
- Forged Steel Check Valve Class 300
- Forged Steel Check Valve Class 600
- Forged Steel Check Valve Class 800
- Forged Steel Check Valve Class 1500
- Forged Steel Check Valve Class 1690
- Forged Steel Check Valve Class 2500
Detail Specification
| Size Range | NPS ½"-2" |
| Trim | 13Cr-316H |
| Body/Bonnet | A105, A182 F11 and F316/F316L |
| Connection | Threaded Socket Weld Butt Weld |
Pressure Seal Valve
Vogt Pressure Seal Valve
Vogt Wedge Gate Valve Pressure Seal
Vogt Wedge Gate Valve Forgings up to 50 tons are machined to final shape in any alloyed steel material; strict surveillance of machining tolerances ensure proper mating of parts during assembly. Both gates are guided into the body by integral ribs or guides to avoid any rotation and keep aligned during the stroke.
Product Line
- TBP – Threaded Body – one forged piece with Pillars
- TBY – Threaded Body – one forged piece with Yoke
- SR1 – Segmented ring – one forged piece with Yoke
- SR2 – Segmented ring – two forged piece with Yoke
Detail Specification
| Size Range | NPS ½"-8" |
| Body/Bonnet | A105, A182 F11 and A182 F22L |
Vogt Pressure Seal Valve
Vogt Wedge Gate Valve Pressure Seal
Vogt Wedge Gate Valve Forgings up to 50 tons are machined to final shape in any alloyed steel material; strict surveillance of machining tolerances ensure proper mating of parts during assembly.
Product Line
- TBP – Threaded Body –
one forged piece with Pillars - TBY – Threaded Body –
one forged piece with Yoke - SR1 – Segmented ring –
one forged piece with Yoke - SR2 – Segmented ring –
two forged piece with Yoke
Gate Valve Pressure Rating
- Wedge Gate Valve Pressure Seal
Class 900 - Wedge Gate Valve Pressure Seal
Class 1500 - Wedge Gate Valve Pressure Seal
Class 2500
Detail Specification
| Size Range | NPS ½"-8" |
| Body/Bonnet | A105, A182 F11 and A182 F22L |
Vogt Pressure Seal Valve
Vogt T-Pattern Globe Valve Pressure Seal
Vogt Pressure Seal Globe T Valve have the stem orientation 90 degrees from the flow line. “Y” Pattern Globe have 40-50 degrees inclined stem from the flow line to increase the CV
Product Line
- TBP – Threaded Body – one forged piece with Pillars
- TBY – Threaded Body – one forged piece with Yoke
- SR1 – Segmented ring – one forged piece with Yoke
- SR2 – Segmented ring – two forged piece with Yoke
Body Feature
-
Forged closed die or open die
Detail Specification
| Size Range | NPS ½"-24" |
| Trim | 13Cr-316H |
| Class | ASME Class 900 up to 4500 |
| Connection | BW & Flange |
Vogt Pressure Seal Valve
Vogt T-Pattern Globe Valve Pressure Seal
Vogt Pressure Seal Globe T Valve have the stem orientation 90 degrees from the flow line. “Y” Pattern Globe have 40-50 degrees inclined stem from the flow line to increase the CV
Product Line
- TBP – Threaded Body – one forged piece with Pillars
- TBY – Threaded Body – one forged piece with Yoke
- SR1 – Segmented ring – one forged piece with Yoke
- SR2 – Segmented ring – two forged piece with Yoke
Body Feature
-
Forged closed die or open die
Detail Specification
| Size Range | NPS ½"-24" |
| Trim | 13Cr-316H |
| Class | ASME Class 900 up to 4500 |
| Connection | BW & Flange |
Vogt Non Return Valve
Vogt Non Return Valve Swing & Tilting Disc Check Valve
Vogt non return Check valve seat obturator surface contact is 4,75° inclined to have perfect bubbletight sealing.Obturator and its arm lever are connected and free to move around the hinge pin to close by weight itself.
Product Line
- TB – Threaded Body one forged piece
- SR – Segmented ring one forged piece
Check Valve Pressure Rating
- Swing Check Valve Class 900
- Swing Check Valve Class 1500
- Swing Check Valve Class 2500
- Tilting Check Valve Class 900
- Tilting Check Valve Class 1500
- Tilting Check Valve Class 2500
Detail Specification
| Size Range | NPS ½"-24" |
| Pressure Rating | ASME Class 900 up to 2500 |
| Body/Bonnet | A105, ASTM A182 F11 |
| Connection | Flange & Butt Weld |
Vogt Non Return Valve
Vogt Non Return Valve Swing & Tilting Disc Check Valve
Vogt non return Check valve seat obturator surface contact is 4,75° inclined to have perfect bubbletight sealing.Obturator and its arm lever are connected and free to move around the hinge pin to close by weight itself.
Product Line
- TB – Threaded Body one forged piece
- SR – Segmented ring one forged piece
Check Valve Pressure Rating
- Swing Check Valve Class 900
- Swing Check Valve Class 1500
- Swing Check Valve Class 2500
- Tilting Check Valve Class 900
- Tilting Check Valve Class 1500
- Tilting Check Valve Class 2500
Detail Specification
| Size Range | NPS ½"-24" |
| Pressure Rating | ASME Class 900 up to 2500 |
| Body/Bonnet | A105, ASTM A182 F11 |
| Connection | Flange & Butt Weld |
Ball Valve
Vogt Ball Valve
Vogt Floating Ball Valve
Full Port
Vogt Floating Ball Valve Full Port are available in a wide range of Thermoplastic Seats and Elastomeric and Thermoplastic Seal Vogt Ball valve are designed in full compliance with the requirements set forth by API 6D and API 608.
Ball Valve Feature
- Bolted Closure
- Construction 3 Pieces
- Fire safe to API 607
- API 608 Design
Ball Valve Pressure Rating
- Floating Ball Valve Full Port Class 150
- Floating Ball Valve Full Port Class 300
- Floating Ball Valve Full Port Class 600
- Floating Ball Valve Full Port Class 1500
Detail Specification
| Size Range | NPS 1/2” to 6” |
| Body design | Closed Dye Forging |
| Pressure Rating | ASME Class 150 up to 1500 |
| Bore dimension | Full and Standard Bore |
Vogt Ball Valve
Vogt Floating Ball Valve
Full Port
Vogt Floating Ball Valve Full Port are available in a wide range of Thermoplastic Seats and Elastomeric and Thermoplastic Seal Vogt Ball valve are designed in full compliance with the requirements set forth by API 6D and API 608.
Ball Valve Feature
- Bolted Closure
- Construction 3 Pieces
- Fire safe to API 607
- API 608 Design
Ball Valve Pressure Rating
- Floating Ball Valve Full Port Class 150
- Floating Ball Valve Full Port Class 300
- Floating Ball Valve Full Port Class 600
- Floating Ball Valve Full Port Class 1500
Detail Specification
| Size Range | NPS 1/2” to 6” |
| Body design | Closed Dye Forging |
| Pressure Rating | ASME Class 150 up to 1500 |
| Bore dimension | Full and Standard Bore |
Vogt Ball Valve

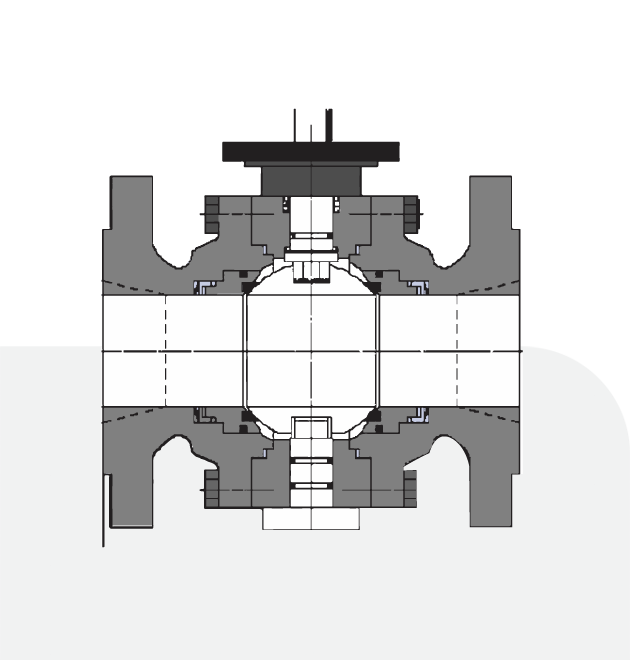

Vogt Trunnion Mounted
Ball Valve
Vogt Ball Valve are available in a wide range of Thermoplastic Seats and Elastomeric and Thermoplastic Seal Vogt Ball valve are designed in full compliance with the requirements set forth by API 6D and API 608.
Ball Valve Feature
- Soft or metal Seated
- Fire-safe certified
Ball Valve Pressure Rating
- Trunnion Mounted Ball Valve Class 150
- Trunnion Mounted Ball Valve Class 300
- Trunnion Mounted Ball Valve Class 600
- Trunnion Mounted Ball Valve Class 900
- Trunnion Mounted Ball Valve Class 1500
- Trunnion Mounted Ball Valve Class 2500
Detail Specification
| Size Range | NPS 1 1/2” to 60” |
| Body design | Ring Forgings |
| Pressure Rating | ASME Class 150 up to 2500 |
| Bore dimension | Full and Standard Bore |
