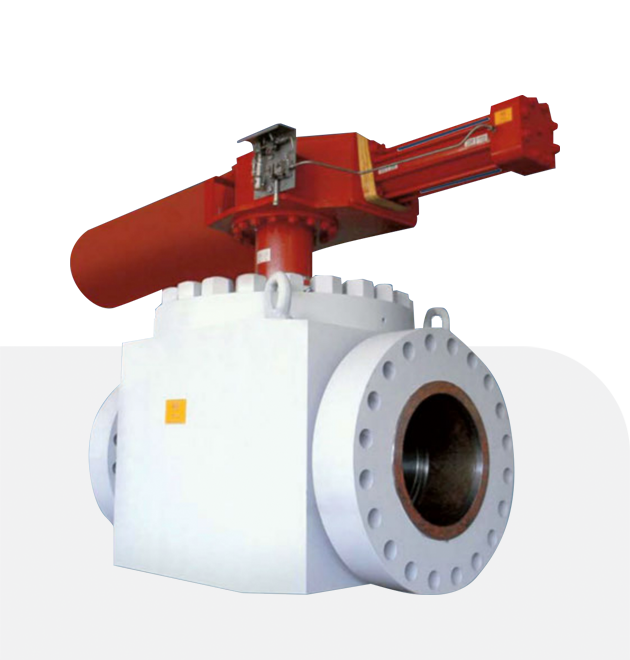

Velan ABV Top Entry Trunnion Ball Valve
API 6D: NPS 1⁄2 – 60 (DN 15 – 1500) Classes 150 – 4500
On/Off Velan ABV Ball Valve suitable for general and special applications. Suitable for all type of fluids and aggressive environments
Main Features
- Design in compliance with: API 6D
- Fire safe design as per API 6FA
- Temperature range: -150 to 842°F
- Available in carbon
- Available in low temperature carbon
- Available in stainless
- Available in duplex
- Available in suitable for all types of fluids
Velan ABV Series
Detail Specification
| Size | ½" - 60" |
| Pressure Classes | ASME 150-4500, API 2000-15000 |
| In Compliance With | API 6D, API 6A, ASME B16.34, PED |
| Overlays | Alloy 625 |
| Options | API 6DSS |
Velan ABV Top Entry Trunnion Ball Valve
API 6D: NPS 1⁄2 – 60 (DN 15 – 1500) Classes 150 – 4500
On/Off Velan ABV Ball Valve suitable for general and special applications. Suitable for all type of fluids and aggressive environments
Main Features
- Design in compliance with: API 6D
- Fire safe design as per API 6FA
- Temperature range: -150 to 842°F
- Available in carbon
- Available in low temperature carbon
- Available in stainless
- Available in duplex
- Available in suitable for all
types of fluids
Velan ABV Series
Detail Specification
| Size | ½" - 60" |
| Pressure Classes | ASME 150-4500, API 2000-15000 |
| In Compliance With | API 6D, API 6A, ASME B16.34, PED |
| Overlays | Alloy 625 |
| Options | API 6DSS |
Trunnion Ball Valve Fully Welded Body
API 6D API 6A ASME B16.34 PED
On/Off Valve suitable for general and special applications. Suitable for all type of fluids and aggressive environments
Features
- Corrosive, Sour (H2S), abrasive and Oxygen Service
- Slurries and solid suspension in
gases and air - Vapour (including steam) whether
clean and dirty
Series
- BT2-BT3 Ball Valve
- BTU Ball Valve
- BT4 Ball Valve
- BT5 Ball Valve
Detail Specification
| Bolting Material | 316SS / 660SS |
| Specifications | NACE Cl. III Bolting |
| Actuation | Gear Operator w/Locking Device |
| Backup Ring Material | Low Temp Buna N |
| Seat Insert | Devlon® V |

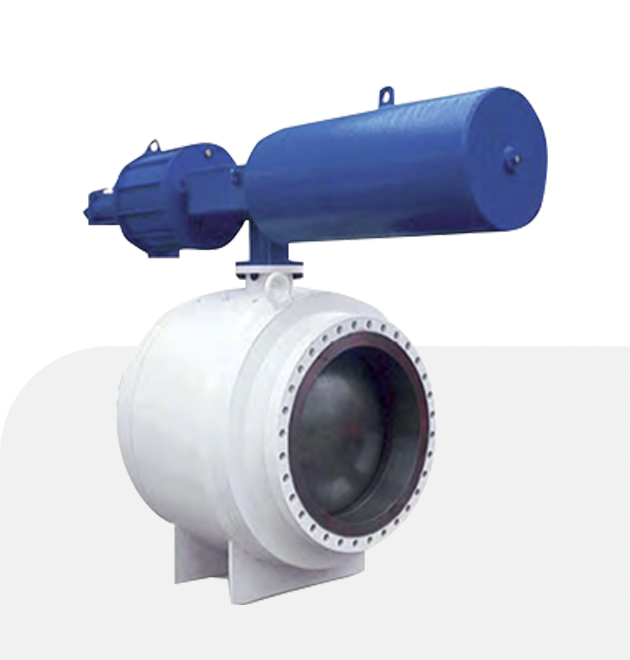

Velan ABV Fully Welded Body Trunnion Ball Valve
API 6D: NPS 2 – 60 (DN 50 – 1500) Classes 150 – 4500
Velan ABV Ball Valve Suitable for all type of fluids and aggressive environments including Corrosive, Sour (H2S), abrasive and Oxygen Service, Slurries and solid suspension in gases
Main Features
- Design in compliance with: API 6A
- Fire safe design as per API 607
- Available in exotic alloy steels
Options
- Single or double piston effect seats
- Sealing injection for seats and stem
Velan ABV Series
Detail Specification
| Size | 2" - 60" |
| Model | BTU (standard), BTU-BURIED (buried service) |
| End Connecttions | Flanged, Butt Weld |
| Temperature Range | -40°C to +260°C |
| Seat Material | Metal Seat, PTFE, RPTFE |
Velan ABV Fully Welded Body Trunnion Ball Valve
API 6D: NPS 2 – 60 (DN 50 – 1500) Classes 150 – 4500
Velan ABV Ball Valve Suitable for all type of fluids and aggressive environments including Corrosive, Sour (H2S), abrasive and Oxygen Service, Slurries and solid suspension in gases
Main Features
- Design in compliance with: API 6A
- Fire safe design as per API 607
- Available in exotic alloy steels
Options
- Single or double piston effect seats
- Sealing injection for seats and stem
Velan ABV Series
Detail Specification
| Size | 2" - 60" |
| Model | BTU (standard), BTU-BURIED (buried service) |
| End Connecttions | Flanged, Butt Weld |
| Temperature Range | -40°C to +260°C |
| Seat Material | Metal Seat, PTFE, RPTFE |

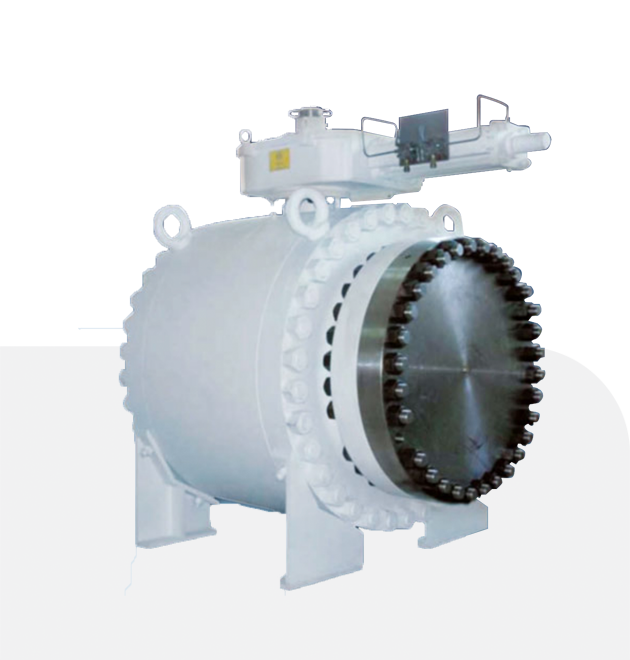

Velan ABV Side Entry Trunnion Ball Valve
API 6D: NPS 1⁄2 – 60 (DN 15 – 1500) Classes 150 – 4500
Velan ABV ball valve Trunnion ball valve Available in carbon, Low-temperature carbon, Stainless, Duplex, and Exotic Alloy Steels
Options
- Soft (leakage rate: A)
- Chromium carbid
- Sealing injection for seats
- Sealing injection for stem
- Velan ABV ball valve overlay on sealing surface available in alloy 625
- Fully internal cladding available in alloy 625
Velan ABV Series
Detail Specification
| Bolting Material | LTCS / LTCS |
| Specifications | NACE Cl. II B7M/2HM Bolting / Firesafe |
| Actuation | Gear Operator w/Locking Device |
| Body & Adaptor | Xylan ® Coated (CS/LTCS Only) |
| Seat Insert | HT4 (PEEK ™ ) |
Velan ABV Side Entry Trunnion Ball Valve
API 6D: NPS 1⁄2 – 60 (DN 15 – 1500) Classes 150 – 4500
Velan ABV ball valve Trunnion ball valve Available in carbon, Low-temperature carbon, Stainless, Duplex, and Exotic Alloy Steels
Options
- Soft (leakage rate: A)
- Chromium carbid
- Sealing injection for seats
- Sealing injection for stem
- Velan ABV ball valve overlay on sealing surface available in alloy 625
- Fully internal cladding available in
alloy 625
Velan ABV Series
Detail Specification
| Bolting Material | LTCS / LTCS |
| Specifications | NACE Cl. II B7M/2HM Bolting / Firesafe |
| Actuation | Gear Operator w/Locking Device |
| Body & Adaptor | Xylan ® Coated (CS/LTCS Only) |
| Seat Insert | HT4 (PEEK ™ ) |
Trunnion Ball Valve Three Ways – “L” or “T” Port
API 6D API 6A ASME B16.34 PED
Valve suitable for changing flow direction using the “L” Port and Diversion & mixing, connecting both the opening to the side opening using the “T” Port
Features
- Corrosive, Sour (H2S), abrasive and Oxygen Service
- Slurries and solid suspension in gases and air
- Vapour (including steam) whether clean and dirty
Series
- BT2-BT3 Ball Valve
- BTU Ball Valve
- BT4 Ball Valve
- BT5 Ball Valve
Detail Specification
| Bolting Material | 316SS / 660SS |
| Specifications | NACE Cl. III Bolting |
| Actuation | Gear Operator w/Locking Device |
| Backup Ring Material | Low Temp Buna N |
| Seat Insert | Devlon® V |

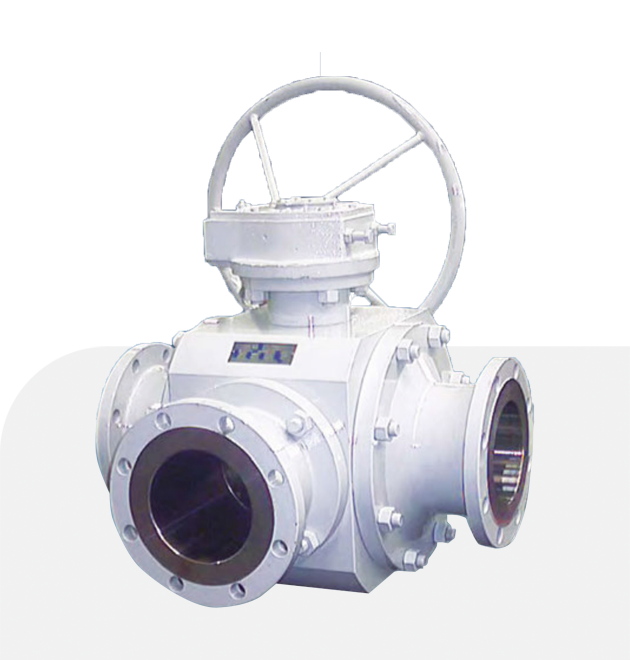

Velan ABV Three-Way Trunnion and Diverter
API 6D: NPS 4 – 36 (DN 100–900) Classes 150 – 4500
Velan ABV suitable for changing flow direction using the “L” Port and Diversion & mixing
Main Features
- Design in compliance with: ASME B16.34
- Clean or dirty vapour (including steam)
Options
- Velan ABV ball valve overlay on sealing surface available in alloy 825
- Fully internal cladding available in alloy 825
- Hardfacing for metal-seated valves is available in tungsten carbide
Velan ABV Series
Detail Specification
| Size | 4"-36" |
| End Connections | Ring Type Joint |
| Body Material | ASTM A216 WCB |
| Trim Material | SS 316, Duplex |
| Seat Material | Nylon 6, Nylon PA12G |

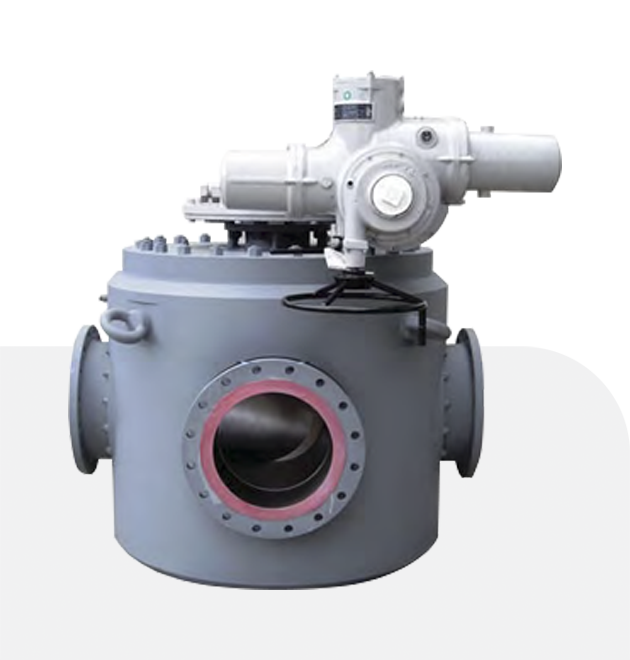

Velan ABV Four-Way Trunnion and Diverter Ball Valve
API 6D: NPS 4 – 36 (DN 100–900) Classes 150 – 4500
Velan ABV Ball Valve Four-Way double “L” port diverter valve suitable for changing flow directions with special design for avoiding the stop of the flow
Main Features
- Trunnion mounted ball
- Split bolted body
- Anti blow-out stem
- Fire safe design
- Antistatic device
- Design in compliance with: PED
- Temperature range: -101 to 450°C
Velan ABV Series
Detail Specification
| Bolting Material | 316SS / 660SS |
| Specifications | NACE Cl. III Bolting |
| Actuation | Gear Operator w/Locking Device |
| Backup Ring Material | Low Temp Buna N |
| Seat Insert | Devlon® V |
