Solenoid Valve
SMC Pilot Operated 4/5 Port, Type SY3000 Solenoid Valve
SY3000 Series 5-Port Solenoid Valve Base Mounted Manifold
The combined mounting of a 3-port valve and a 5-port valve is possible. A wide variety of manifold options are available, such as the aluminum body manifold, DIN rail, and stacking type manifold.
Detail Specification
| Fluid | Air |
| Ambient and fluid temperature (°C) | –10 to 50 (No freezing) |
| Enclosure | Dust proof (∗ DIN terminal and M8 connector: IP65) |
| Pilot exhaust method | Common exhaust type for main and pilot valve |
| Manual override (Manual operation) | Non-locking push type, Push-turn locking slotted type, Push-turn locking lever type |
SMC Pilot Operated 4/5 Port, Type JSY1000 Solenoid Valve
Compact 5-Port Solenoid Valve/Plug-in Type JSY1000
JSY series is a 5-port directional control
valve targeted for the robotic arms and
end of arm tools.
Features
- Size reduction possible thanks to a flow increase
- This leads to space saving, weight reduction, and a large flow rate
- Power consumption: 0.1 W (With power saving circuit*), 0.4 W (Standard) *Made to Order
- Connector type manifold
- 4-position dual 3-port valve available
Detail Specification
| Valve Type | Rubber Seal |
| Operating Pressure Range | -100 kPa to 0.7 |
| Enclosure | IP40 |
| Indicator Light | LED |
| Ambient and Fluid Temperatures [Celcius] | -10 to 50 (No Freezing) |
| Coil Rated Voltage [DC] | 24 V |
SMC Pilot Operated 4/5 Port, Type JSY1000 Solenoid Valve
Compact 5-Port Solenoid Valve/Plug-in Type JSY1000
JSY series is a 5-port directional control
valve targeted for the robotic arms and
end of arm tools.
Features
- Size reduction possible thanks to a flow increase
- This leads to space saving, weight reduction, and a large flow rate
- Power consumption: 0.1 W (With power saving circuit*), 0.4 W (Standard) *Made to Order
- Connector type manifold
- 4-position dual 3-port valve available
Detail Specification
| Valve Type | Rubber Seal |
| Operating Pressure Range | -100 kPa to 0.7 |
| Enclosure | IP40 |
| Indicator Light | LED |
| Ambient and Fluid Temperatures [Celcius] | -10 to 50 (No Freezing) |
| Coil Rated Voltage [DC] | 24 V |
SMC Pilot Operated 3 Port Type VQZ100 Solenoid Valve
Metal Seal/Rubber Seal, Body Ported SeriesVQZ100
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style.
Detail Specification
| Max. operating pressure (MPa) | 0.7 (High pressure type: 1.0) |
| Min. operating pressure (MPa) | 0.15 |
| Max. operating frequency (Hz) | 20 |
| Enclosure | Dustproof (DIN terminal: IP65 Note 3) |
| Ambient and fluid temperature (°C) | –10 to 50 (No freezing) |
SMC Pilot Operated 3/4/5 Port, Type V100 Solenoid Valve
Power Consumption 0.1W 3-Port Solenoid Valve V100
Following extensive research and development, world leaders SMC Pneumatics have launched their latest Series V100 – one of the most advanced solenoid valves in today’s market.
Detail Specification
| Fluid | Air |
| Ambient and fluid temperature (°C) | –10 to 50 (No freezing) |
| Response time (DC) (ms) | ON: 5 or less, OFF: 4 or less |
| Max. operating frequency (Hz) | 20 |
| Manual override | Non-locking push, Locking slotted |
| Impact/Vibration resistance (m/s2) | 150/30 |
| Enclosure | Dust proof |
SMC Pilot Operated 3/4/5 Port, Type V100 Solenoid Valve
Power Consumption 0.1W 3-Port Solenoid Valve V100
Following extensive research and development, world leaders SMC Pneumatics have launched their latest Series V100 – one of the most advanced solenoid valves in today’s market.
Detail Specification
| Fluid | Air |
| Ambient and fluid temperature (°C) | –10 to 50 (No freezing) |
| Response time (DC) (ms) | ON: 5 or less, OFF: 4 or less |
| Max. operating frequency (Hz) | 20 |
| Manual override | Non-locking push, Locking slotted |
| Impact/Vibration resistance (m/s2) | 150/30 |
| Enclosure | Dust proof |
SMC Direct Operated 3/4/5 Port Solenoid Valve
3-Port Solenoid Valve/Direct Operated Poppet Type VT307
3 Port Direct Operated Poppet Rubber Seal, Low Power Consumption, Suitable for Use in Vacuum Applications, Selective porting can provide 6 valve functions, Such as N.C. valve, N.O. valve, Divider valve, Selector valve
Detail Specification
| Operating Pressure Range | 0 to 1 MPa (High-pressure type), 0 to 0.7 MPa (Standard type) |
| Response Time | 20 ms or less (at 0.5 MPa) |
| Impact/Vibration resistance | 150/50 m/s2 |
| Lubrication | Not required (Use turbine oil Class 1 ISO VG32, if lubricated.) |
| Ambient and fluid temperature | –10 to 50°C (No freezing) |

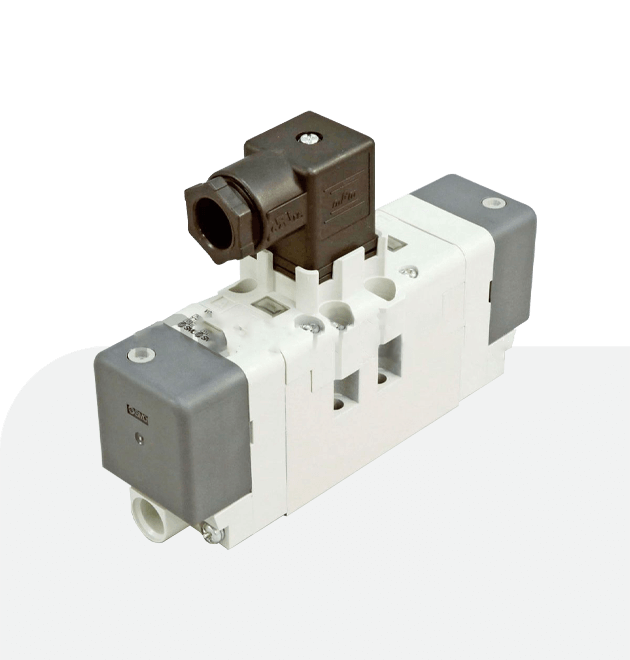

ISO Standard Solenoid Valve: Size 1, 2 Metal Seal/Rubber
Seal Series VQ7-6
5-Port Solenoid Valve/ISO Standard VQ7-6
SMC’s VQ7-6/7-8 series valve conforms to ISO standard 5591/I. A choice of metal or rubber seal increases compatibility with various operating and environmental conditions.
Features
- A wide variety of manifold options
- Conforms to ISO standard 5599/I
SMC ISO Valves Other Series
Detail Specification
| Valve construction | Metal Seal, Rubber Seal |
| Maximum operating pressure | 1.0 MPa |
| Impact/Vibration resistance | 150/30 m/s2 (2) |
| Enclosure | IP65 (Dusttight, Low jetproof) |
| Manual override | Push type (Tool required) |
ISO Standard Solenoid Valve: Size 1, 2 Metal Seal/Rubber
Seal Series VQ7-6
5-Port Solenoid Valve/ISO Standard VQ7-6
SMC’s VQ7-6/7-8 series valve conforms to ISO standard 5591/I. A choice of metal or rubber seal increases compatibility with various operating and environmental conditions.
Features
- A wide variety of manifold options
- Conforms to ISO standard 5599/I
SMC ISO Valves Other Series
Detail Specification
| Valve construction | Metal Seal, Rubber Seal |
| Maximum operating pressure | 1.0 MPa |
| Impact/Vibration resistance | 150/30 m/s2 (2) |
| Enclosure | IP65 (Dusttight, Low jetproof) |
| Manual override | Push type (Tool required) |
SMC 2/3 Port Solenoid Valves/Air Operated Valve
2 Port Solenoid Valve (2 Way Valve) with Built-in Y-strainer VXK
SMC’s series VXK21/22/23, 2-port solenoid valve was designed with a Y type strainer installed inside the body to remove foreign materials mixed in fluids before they enter the actuating part of the valve (armature).
Detail Specification
| Body material | C37 |
| Seal material | NBR, FKM, EPDM, PTFE |
| Enclosure | Dust-tight, Water-jet-proof type (IP65) |
| Environment | Location without corrosive or explosive gases |
| Material | Stainless Steel |
SMC Type VXD 2/3 Port Solenoid Valves/Air Operated Valve
Pilot Operated 2 Port Solenoid Valve (2 Way Valve) VXD
Our updated pilot operated 2 port solenoid valve, VXD Series, is 7% smaller than former conventional models, whilst still delivering big benefits to customers.
Detail Specification
| Valve construction | Pilot operated 2 port diaphragm type |
| Body material | Aluminum, Resin, C37 (Brass), Stainless steel, CAC407 (Bronze casting) |
| Seal material | NBR, FKM, EPDM |
| Enclosure | Dust-tight, Water-jet-proof type (IP65) |
| Environment | Location without corrosive or explosive gases |
SMC Type VXD 2/3 Port Solenoid Valves/Air Operated Valve
Pilot Operated 2 Port Solenoid Valve (2 Way Valve) VXD
Our updated pilot operated 2 port solenoid valve, VXD Series, is 7% smaller than former conventional models, whilst still delivering big benefits to customers.
Detail Specification
| Valve construction | Pilot operated 2 port diaphragm type |
| Body material | Aluminum, Resin, C37 (Brass), Stainless steel, CAC407 (Bronze casting) |
| Seal material | NBR, FKM, EPDM |
| Enclosure | Dust-tight, Water-jet-proof type (IP65) |
| Environment | Location without corrosive or explosive gases |
SMC Type VDW 2 Port Solenoid Valve
Compact Direct Operated 2 Port Solenoid Valve (2 Way Valve) VDW
The VDW series is a compact, direct operated, 2/3 port solenoid valve for water, air and vacuum.
Detail Specification
| Body material | Aluminum, Resin, Brass, Stainless steel |
| Seal material | NBR, FKM |
| Enclosure | Dusttight, Low jetproof (IP65) |
| Environment | Location without corrosive or explosive gases |
| Withstand pressure MPa | 2.0 (resin body type 1.5) |
SMC Type VCH 5.0 MPa Pilot Operated
2/3-Port Solenoid Valve & Check Valve VCH
Process Industry and PET machine builder’s requests for both 2 and 3 port, pilot operated, solenoid valves, with high pressure performance are now answered with the launch of SMC’s latest Series VCH range.
Detail Specification
| Max. operating pressure | 5.0 MPa |
| Operating pressure differential | 0.5 to 5.0 MPa |
| Body material | Brass |
| Main seal material | Polyurethane elastomer |
| Fluid temperature | 5 to 80°C |
SMC Type VCH 5.0 MPa Pilot Operated
2/3-Port Solenoid Valve & Check Valve VCH
Process Industry and PET machine builder’s requests for both 2 and 3 port, pilot operated, solenoid valves, with high pressure performance are now answered with the launch of SMC’s latest Series VCH range.
Detail Specification
| Max. operating pressure | 5.0 MPa |
| Operating pressure differential | 0.5 to 5.0 MPa |
| Body material | Brass |
| Main seal material | Polyurethane elastomer |
| Fluid temperature | 5 to 80°C |
