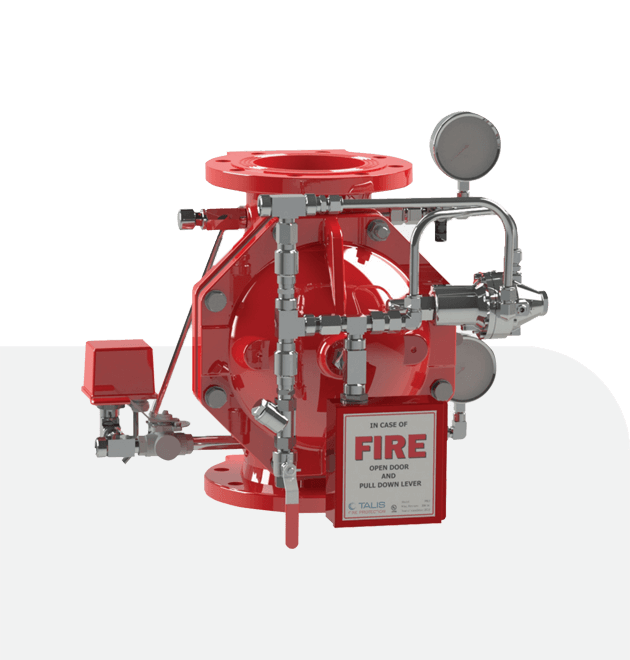

DELUGE SYSTEM

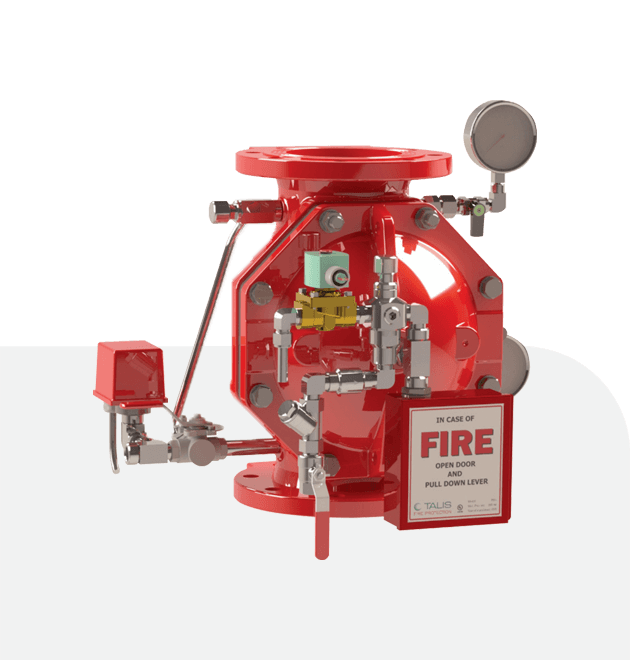

Raphael Deluge System
Electric Actuated with Local
Reset Deluge Valve
Raphael Deluge System The FDV is a Fire Protection control valve for Deluge fire
Sprinkler System, designed for installations in hazardous environments
Raphael Fire System Features :
- Open fail safe valve, maintained in stand-by closed position
- Hydro-dynamic pattern design ensures
high flow rates with minimum head loss
Raphael Fire System Series :
- Raphael Deluge System FDV-DE1
- Raphael Deluge System FDV-DP0
- Raphael Deluge System FDV-DA1
- Raphael Deluge System FDV-DC0
- Raphael Deluge System FDV-DC1
Detail Specification
| Size Range | 40mm to 250mm (1½’’ to 10”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Pneumatics | Air,Nitrogen |
| Fluid | Water, Brackish water, Sea water, Foam |
| Available Connections Ends | Flange-Flange |
Modulating Deluge System
Hydraulic Actuated with
Remote Reset Deluge Valve

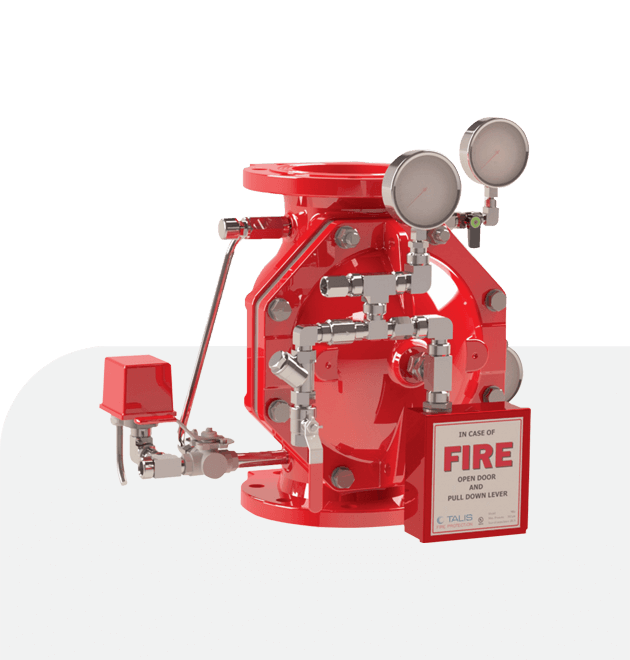

Raphael Fire System The FDV-DH1 Deluge system is actuated hydraulically and resets remotely When the Wet pilot detection line’s automatic fire sprinklers are subjected to flame
Raphael Fire System Features :
- Hydro-dynamic pattern design ensures high flow rates with minimum head loss
- Soft closing upon pressurization of the valve’s control chamber, by line pressure
Raphael Fire System Series :
- Raphael Deluge System FDV-DE0
- Raphael Deluge System FDV-DH0
- Raphael Deluge System FDV-DA0
- Raphael Deluge System FDV-DA1
- Raphael Deluge System FDV-DE1
Detail Specification
| Size Range | 40mm to 250mm (1½’’ to 10”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Fluid | Water, Brackish water, Sea water, Foam |
| Available Connections Ends | Groove-Groove |
Modulating Deluge System
Hydraulic Actuated with
Remote Reset Deluge Valve
Raphael Fire System The FDV-DH1 Deluge system is actuated hydraulically and resets remotely When the Wet pilot detection
line’s automatic fire sprinklers are
subjected to flame
Raphael Fire System Features :
- Hydro-dynamic pattern design ensures high flow rates with minimum head loss
- Soft closing upon pressurization of the valve’s control chamber, by line pressure
Raphael Fire System Series :
- Raphael Deluge System FDV-DE0
- Raphael Deluge System FDV-DH0
- Raphael Deluge System FDV-DA0
- Raphael Deluge System FDV-DA1
- Raphael Deluge System FDV-DE1
Detail Specification
| Size Range | 40mm to 250mm (1½’’ to 10”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Fluid | Water, Brackish water, Sea water, Foam |
| Available Connections Ends | Groove-Groove |
Raphael Deluge System
Hydraulic Actuated & Anti Columning Remote Reset
Raphael Deluge System FDV-DA1 The FDV is a Fire Protection control valve for Deluge fire sprinkler systems, designed for installations in hazardous environments.
Raphael Fire System Features :
- Soft closing upon pressurization of the valve’s control chamber
- By line pressure or other independent water source, prevents surges
Raphael Fire System Series :
Detail Specification
| Size Range | 40mm to 250mm (1½’’ to 10”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Available Connections Ends | Flange-Groove |
| Fluid | Water, Brackish water, Sea water, Foam |

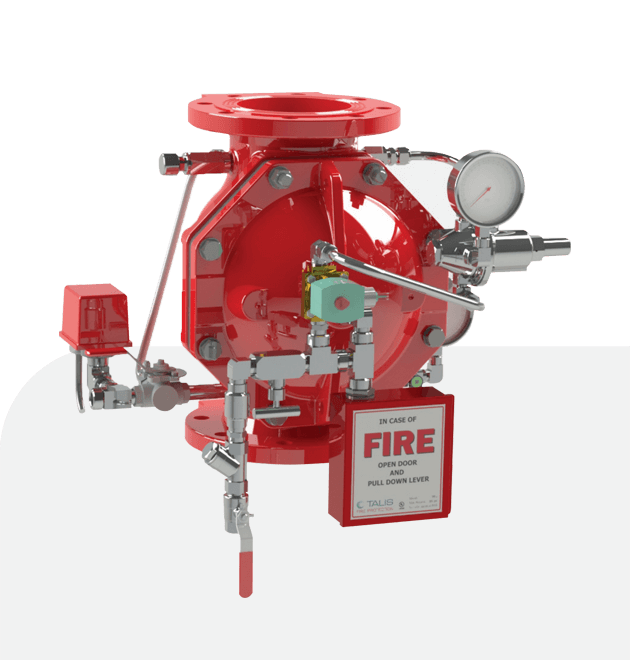

Raphael Modulating FDV-PE1
Electric Actuated with Remote
Reset Pressure Reducing
The FDV-PE1 is a pressure control Deluge system, actuated electrically and resets remotely. An electric detection systems activates
Raphael Fire System Features :
- Hydro-dynamic pattern design ensures high flowrates with minimum head loss
- Soft closing upon pressurization of the valve’s control chamber, by line pressure
Raphael Fire System Series :
Detail Specification
| Size Range | 40mm to 250mm (1½’’ to 10”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Fluid | Water, Brackish water, Sea water, Foam |
| Ragulation Ratio | 5:1 |
| Sensitivity | 1.45 psi (0.1 Bar) |
| Available Connections Ends | Groove-Flange |
Raphael Modulating
FDV-PE1
Electric Actuated with Remote Reset Pressure Reducing
The Raphael Fire System FDV-PE1 Type is a pressure control Deluge system, actuated electrically and resets remotely. An electric detection systems activates
Raphael Fire System Features :
- Hydro-dynamic pattern design ensures high flowrates with minimum head loss
- Soft closing upon pressurization of the valve’s control chamber, by line pressure
Raphael Fire System Series :
Detail Specification
| Size Range | 40mm to 250mm (1½’’ to 10”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Fluid | Water, Brackish water, Sea water, Foam |
| Ragulation Ratio | 5:1 |
| Sensitivity | 1.45 psi (0.1 Bar) |
| Available Connections Ends | Groove-Flange |

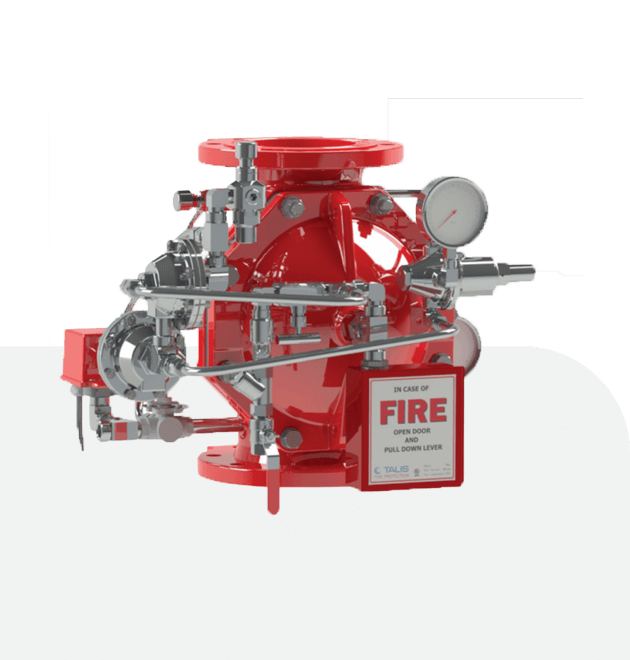

Raphael Modulating FDV-PP0
Pneumatic Actuated with
Local Reset
Designed for vertical or horizontal installation, a globe pattern, line pressure operated FDV-PP0 valve features a direct elastomeric diaphragm seal. It has no balancing spring or internal
Raphael Fire System Features :
- A pressure reducing pilot enables a full control over the downstream pressure
- Hydro-dynamic pattern design ensures high flowrates with minimum head loss
Raphael Fire System Series :
Detail Specification
| Size Range | 40mm to 250mm (1½’’ to 10”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Ragulation Ratio | up to 5:1 |
| Sensitivity | 1.45 psi (0.1 Bar) |
| Pneumatics | Air, Nitrogen |
| Fluid | Water, Brackish water, Sea water, Foam |
| Available Connections Ends | Thread-Thread |
Raphael Modulating
FDV-PP0
Pneumatic Actuated with
Local Reset
Designed for vertical or horizontal installation, a globe pattern, line pressure operated FDV-PP0 valve features a direct elastomeric diaphragm seal. It has no balancing spring or internal
Raphael Fire System Features :
- A pressure reducing pilot enables a full control over the downstream pressure
- Hydro-dynamic pattern design ensures high flowrates with minimum head loss
Raphael Fire System Series :
Detail Specification
| Size Range | 40mm to 250mm (1½’’ to 10”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Ragulation Ratio | up to 5:1 |
| Sensitivity | 1.45 psi (0.1 Bar) |
| Pneumatics | Air, Nitrogen |
| Fluid | Water, Brackish water, Sea water, Foam |
| Available Connections Ends | Thread-Thread |

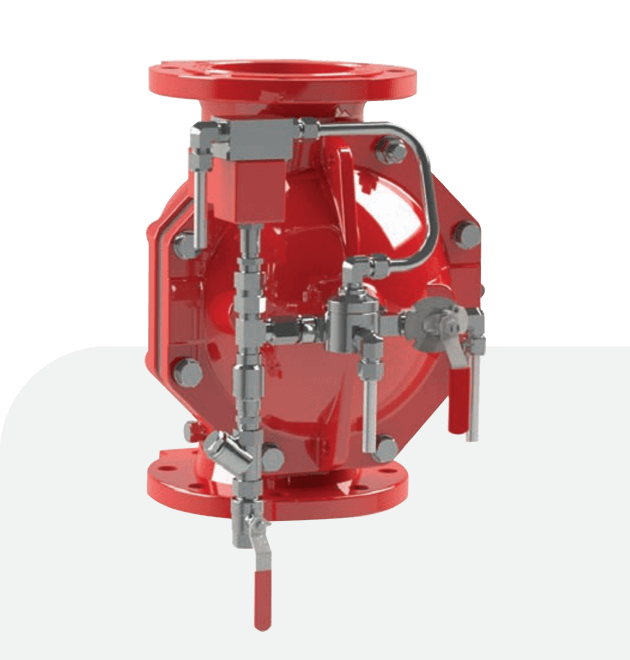

Raphael Basic Deluge system
Electric Actuated with Remote
Reset Deluge Valve
The FDV-AE1 is a Fire Protection control valve for Deluge fire sprinkler systems, designed for installations in hazardous environments. The sensors connected to the fire detection Panel
Raphael Fire System Features :
- Hydro-dynamic pattern design ensures high flowrates with minimum head loss
- The valve trips open automatically upon a gradual release of water pressure
- The valve trips open automatically
Raphael Fire System Series :
Detail Specification
| Size Range | 40mm to 250mm (1½’’ to 10”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Available Connections Ends | Thread-Thread |
| Fluid | Water, Brackish water, Sea water, Foam |
Raphael Basic Deluge system
Electric Actuated with Remote Reset Deluge Valve
The FDV-AE1 is a Fire Protection control valve for Deluge fire sprinkler systems, designed for installations in hazardous environments. The sensors connected to the fire detection Panel
Raphael Fire System Features :
- Hydro-dynamic pattern design ensures high flowrates with minimum head loss
- The valve trips open automatically upon a gradual release of water pressure
- The valve trips open automatically
Raphael Fire System Series :
Detail Specification
| Size Range | 40mm to 250mm (1½’’ to 10”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Available Connections Ends | Thread-Thread |
| Fluid | Water, Brackish water, Sea water, Foam |
ON/OFF

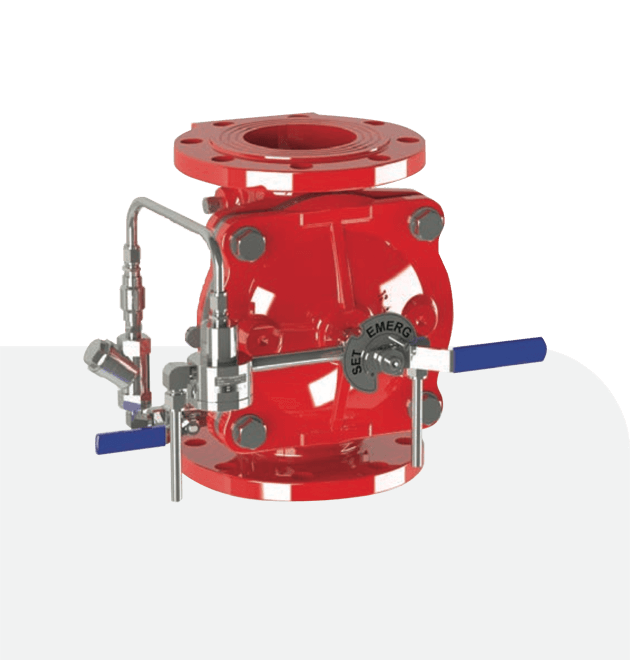

Raphael Monitor Valve
Local Hydraulic Actuated Monitor Valve
The FDV-R-MH0 is a manually operated On-Off Fire Protection Monitor valve, designed to control the opening and closing offire Monitors, in special hazard fire protection systems
Raphael Fire System Features :
- Hydro-dynamic pattern design ensures high flowrates with minimum head
- The valve trips open by manually opening a 3 way ball valve
Raphael Fire System Series :
Detail Specification
| Size Range | 50mm to 200mm (2’’ to 8”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Available Connections Ends | Flange-Flange, Groove-Groove |
| Fluid | Water, Brackish water, Sea water, Foam |

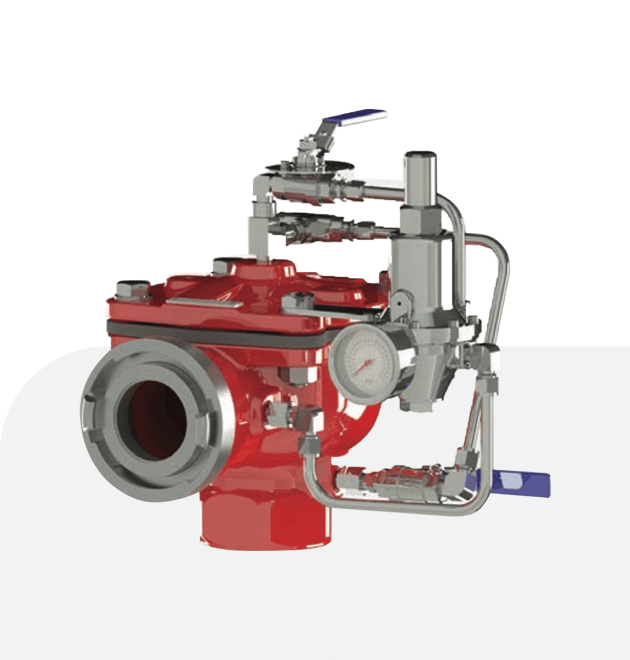

Raphael Hydraulic Hydrants
Local Hydraulic Actuated
Hydrant Valve
The FDV-Ra-HH0 is a hydraulic controlled On-Off Fire Hydrant, designed to connect a pressurized fixed water supply network to a mobile extinguishing unit, through a fire brigade’s quick coupling adapter
Raphael Fire System Features :
- Hydro-dynamic pattern design ensures high flowrates with minimum head loss
- Simple and reliable design
- Quick respond and fast opening of the valve at emergency situation
Raphael Fire System Series :
Detail Specification
| Size Range | 50mm to 200mm (2’’ to 8”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Fluid | Water, Brackish water, Sea water |
| Accessories Upon Request | Pressure gauge, Stand pipe, Breakage device |
| Available Connections Ends | Flange-Hose Coupling |
Raphael Hydraulic Hydrants
Local Hydraulic Actuated
Hydrant Valve
The FDV-Ra-HH0 is a hydraulic controlled On-Off Fire Hydrant, designed to connect a pressurized fixed water supply network to a mobile extinguishing unit, through a fire brigade’s quick coupling adapter
Raphael Fire System Features :
- Hydro-dynamic pattern design ensures high flowrates with minimum head loss
- Simple and reliable design
- Quick respond and fast opening of the valve at emergency situation
Raphael Fire System Series :
Detail Specification
| Size Range | 50mm to 200mm (2’’ to 8”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Fluid | Water, Brackish water, Sea water |
| Accessories Upon Request | Pressure gauge, Stand pipe, Breakage device |
| Available Connections Ends | Flange-Hose Coupling |

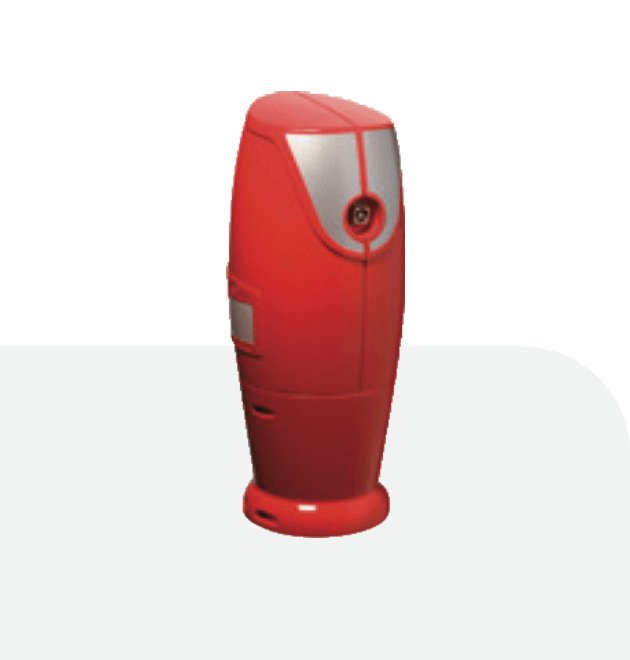

Raphael Mechanical Hydrants
Bayard Rethinks The Fire Protection
The Main Purpose Of Hydrants Is The Withdrawal Of Water For Extinguishing Fires. They Are Connected Directly To The Underground Drinking Water Network The Talis Hydrants Are Available In Two Designs, Underground And Stand Post Hydrants
Raphael Fire System Features :
- Double cut-off with ball on enamelled seat and PUR shut-off cone
- Safety interlock, stop and anti-rotation grip for the inner fittings
- Safe water draining through draining valve and draining pipe with dry section
Raphael Fire System Series :
- Raphael Mechanical Hydrants FDV-HM0
Detail Specification
| Size Range | DN 65-150 |
| Pressure Rating | PM 16 |
| Standards | EN, DIN, ANSI, NF, BS, UNI, UNE |
| Material | Stainless Steel Components |
| Upper Part | Red Polyester Painting |
Raphael Mechanical Hydrants
Bayard Rethinks The Fire Protection
The Main Purpose Of Hydrants Is The Withdrawal Of Water For Extinguishing Fires. They Are Connected Directly To The Underground Drinking Water Network The Talis Hydrants Are Available In Two Designs, Underground And Stand Post Hydrants
Raphael Fire System Features :
- Double cut-off with ball on enamelled seat and PUR shut-off cone
- Safety interlock, stop and anti-rotation grip for the inner fittings
- Safe water draining through draining valve and draining pipe with dry section
Raphael Fire System Series :
- Raphael Mechanical Hydrants
FDV-HM0
Detail Specification
| Size Range | DN 65-150 |
| Pressure Rating | PM 16 |
| Standards | EN, DIN, ANSI, NF, BS, UNI, UNE |
| Material | Stainless Steel Components |
| Upper Part | Red Polyester Painting |
SERVICE VALVE
Raphael Service Control Valve
Pressure Reducing
Control Valve
Designed for vertical or horizontal installation, the line pressure operated FDV-R-PN2 Pressure reducing valve features a direct elastomeric diaphragm seal with no balancing spring or internal metallic wet components in
the valve body.
Raphael Fire System Features :
- Hydro-dynamic pattern design ensures
- Simple and reliable design
- Quick respond to downstream
pressure changes - Pressure reducing to a predetermined
Raphael Fire System Series :
Detail Specification
| Size Range | 40mm to 400mm (1½’’ to 16”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Regulation Ratio | 5:1 |
| Sensitivity | 1.45 psi (0.1 Bar) |
| Fluid | Water, Brackish water, Sea water, Foam |
| Available Connections Ends | Flange-Flange |

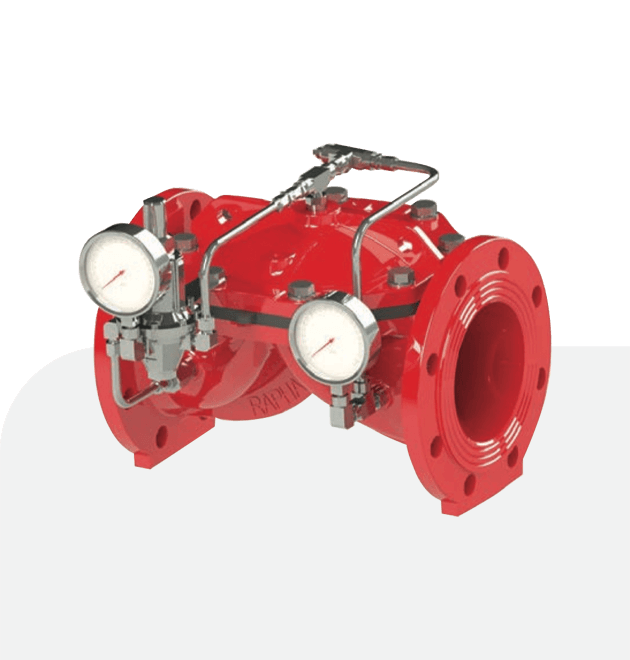

Raphael Control Valve
Pressure Reducing
Control Valve
Designed for vertical or horizontal installation, the line pressure operated FDV-R-PN2 Pressure reducing valve features a direct elastomeric diaphragm seal with no balancing spring or internal metallic wet components in the valve body.
Raphael Fire System Features :
- Hydro-dynamic pattern design ensures
- Simple and reliable design
- Quick respond to downstream
pressure changes - Pressure reducing to a predetermined
Raphael Fire System Series :
Detail Specification
| Size Range | 40mm to 400mm (1½’’ to 16”) |
| Pressure Nominal | 250 psi (17.2 bar) |
| Regulation Ratio | 5:1 |
| Sensitivity | 1.45 psi (0.1 Bar) |
| Fluid | Water, Brackish water, Sea water, Foam |
| Available Connections Ends | Flange-Flange |
