Solenoid Valve

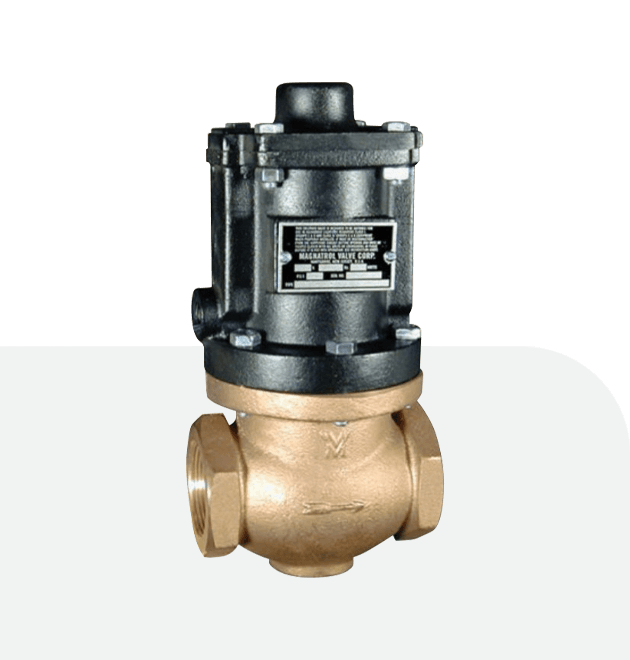

Magnatrol Type L Full Port Bronze Solenoid Valve
Magnatrol Normally Closed – 1/2″ to 3″ Pipe Size
This solenoid valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving the pressure above the piston, which is then lifted from its seat by the plunger.
Detail Specification
| Valve Body | Cast Bronze, Globe Pattern - NPT ends |
| Piston | Bronze |
| Coil Enclosure | Malleable or Cast Iron, 1/2” NPS conduit conn |
| Fluid Temperature | -350°F to 400°F |
| Max Static Pressure | - 300 PSI |
| Plunger | 430 Stainless Steel |
| Pilot Valve | 303 Stainless Steel |
| Bonnet Tube | 304 Stainless Steel |
Magnatrol Type M Reduced Port Bronze Solenoid Valve
Magnatrol Normally Closed – 3/8″ to 3/4″ Pipe Size
This solenoid valve opens when energized and closes when de-energized. In this direct acting valve, when the coil is energized, the stem is lifted from its conical seat
by the plunger.
Detail Specification
| Fluid Temperature | -350°F to 400°F |
| Max Static Pressure | - 150 PSI |
| Valve Body | Cast Bronze, Globe Pattern – NPT ends |
| Coils Enclosure | Malleable Iron, 1/2˝ NPS conduit conn |
| Plunger | 430 Stainless Steel |
| Valve Stem | 303 Stainless Steel |
| Body Seal | Non Asbestos Gasket (Teflon® available) |
| Orifice Seal | Metal to Metal (Soft Seat available) |
Magnatrol Type M Reduced Port Bronze Solenoid Valve
Magnatrol Normally Closed – 3/8″ to 3/4″ Pipe Size
This solenoid valve opens when energized and closes when de-energized. In this direct acting valve, when the coil is energized, the stem is lifted from its conical seat by the plunger.
Magnatrol Other Type
- Magnatrol Type NR Solenoid Valve
- Magnatrol Type S Solenoid Valve
- Magnatrol Type SR Solenoid Valve
- Magnatrol Type J Solenoid Valve
- Magnatrol Type JR Solenoid Valve
- Magnatrol Type K Solenoid Valve
- Magnatrol Type KR Solenoid Valve
Detail Specification
| Fluid Temperature | -350°F to 400°F |
| Max Static Pressure | - 150 PSI |
| Valve Body | Cast Bronze, Globe Pattern – NPT ends |
| Coils Enclosure | Malleable Iron, 1/2˝ NPS conduit conn |
| Plunger | 430 Stainless Steel |
| Valve Stem | 303 Stainless Steel |
| Body Seal | Non Asbestos Gasket (Teflon® available) |
| Orifice Seal | Metal to Metal (Soft Seat available) |

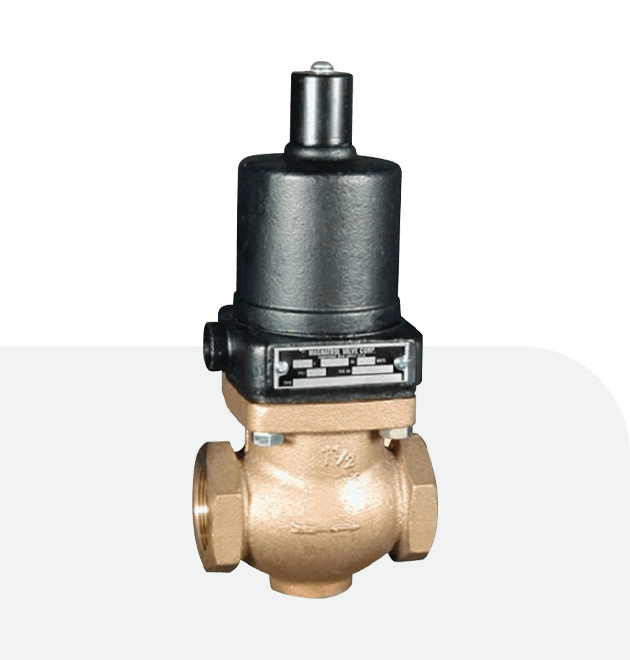

Magnatrol Type LR Full Port Bronze Solenoid Valves
Magnatrol Normally Open – 1/2″ to 3″ Pipe Size
This solenoid valve closes when energized and opens when de-energized. When the coil is energized the plunger presses the poppet, closing the pilot orifice, and opens a bleed passageway to permit pressure to build above the piston and seal it.
Bottom Mounted Option
- Manual Override
- Dashpot
Other Option
- Pilot Tap
- Din Connector
Detail Specification
| Fluid Temperature | -350°F to 400°F |
| Max Static Pressure | - 300 PSI |
| Valve Body | Cast Bronze, Globe Pattern NPT ends (Flanged Ends available) |
| Plunger | 430 Stainless Steel |
| Poppet | 303 Stainless Steel |
| Orifice Seal | Glass Filled Teflon® |

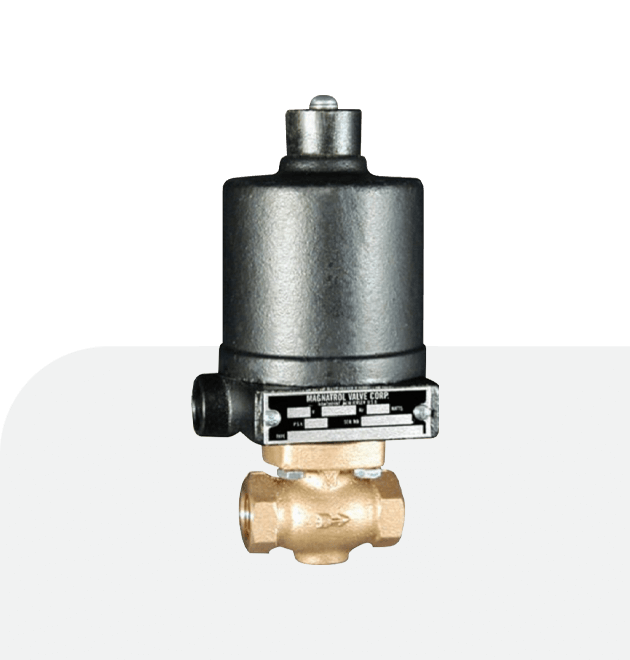

Magnatrol Type MR Reduced Port Bronze Solenoid Valve
Magnatrol Normally Open – 3/8″ to 3/4″ Pipe Size
This solenoid valve closes when energized and opens when de-energized. In this direct acting valve, when the coil is energized, the stem is pressed into its conical seat by the plunger.
Bottom Mounted Option
- Mounting Stud
- Lever
- Flow Control
Other Option
- Hum Free
- Leak/Dead Tight
- Flanged Ends
Detail Specification
| Fluid Temperature | -350°F to 400°F |
| Max Static Pressure | - 150 PSI |
| Valve Body | Cast Bronze, Globe Pattern – NPT ends |
| Coil Enclosure | Malleable Iron, 1/2˝ NPS conduit conn |
| Plunger | 430 Stainless Stee |
| Body Seal | Non Asbestos Gasket (Teflon® available) |
Magnatrol Type MR Reduced Port Bronze Solenoid Valve
Magnatrol Normally Open – 3/8″ to 3/4″ Pipe Size
This solenoid valve closes when energized and opens when de-energized. In this direct acting valve, when the coil is energized, the stem is pressed into its conical seat by the plunger.
Bottom Mounted Option
- Mounting Stud
- Lever
- Flow Control
Other Option
- Hum Free
- Leak/Dead Tight
- Flanged Ends
Detail Specification
| Fluid Temperature | -350°F to 400°F |
| Max Static Pressure | - 150 PSI |
| Valve Body | Cast Bronze, Globe Pattern – NPT ends |
| Coil Enclosure | Malleable Iron, 1/2˝ NPS conduit conn |
| Plunger | 430 Stainless Stee |
| Body Seal | Non Asbestos Gasket (Teflon® available) |
Magnatrol Type A Bronze Solenoid Valve
Magnatrol Normally Closed – 1/2″ to 3″ Pipe Size
This solenoid valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving the pressure above the piston, which is then lifted from its seat by the plunger.
Bottom Mounted Option
- Drain
- Position Indicators
Other Options
- Explosion Proof & Watertight Solenoids
- Nema 4X
- Nickel Plating
Detail Specification
| Max Fluid Temperature | - 212°F |
| Max Static Pressure | - 300 PSI |
| Valve Body | Cast Bronze, Globe Pattern – NPT ends (Flanged Ends available) |
| Body Seal | Buna N or Non Asbestos Gasket (Viton® or Teflon® available) |
| Orifice Seal | Buna N (Viton® or Glass Filled Teflon® available) |
| Coil | Encapsulated Class B, 18˝ leads – (Class H available) |
Magnatrol Type G Full Port Bronze Solenoid Valve
Magnatrol Normally Closed – 1″ to 3″ Pipe Size
This solenoid valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving the pressure above the piston, which is then lifted from its seat by the plunger.
Applications
To control the flow of Water, Air, Gas, Solvents, Vacuum and any other fluids not reactive with construction materials and free of sediment
Modifications
- End Connections
- Position Switches
Detail Specification
| Max Fluid Temperature | - 212°F |
| Max Static Pressure | 150 PSI |
| Valve Body | Cast Bronze, Globe Pattern – NPT ends (Flanged Ends available) |
| Pilot Valve Disc Holder | Brass |
| Pilot Valve Seal | Buna N (Viton® available) |
| Orifice Seal | Buna N (Viton® or Glass Filled Teflon® available) |
Magnatrol Type G Full Port Bronze Solenoid Valve
Magnatrol Normally Closed – 1″ to 3″ Pipe Size
This solenoid valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving the pressure above the piston, which is then lifted from its seat by the plunger.
Applications
To control the flow of Water, Air, Gas, Solvents, Vacuum and any other fluids not reactive with construction materials and free of sediment
Modifications
- End Connections
- Position Switches
Detail Specification
| Max Fluid Temperature | - 212°F |
| Max Static Pressure | 150 PSI |
| Valve Body | Cast Bronze, Globe Pattern – NPT ends (Flanged Ends available) |
| Pilot Valve Disc Holder | Brass |
| Pilot Valve Seal | Buna N (Viton® available) |
| Orifice Seal | Buna N (Viton® or Glass Filled Teflon® available) |
