Solenoid Valve
Mac Small 4 Way Air Valve
Direct Solenoid and Solenoid Pilot Operated Valves

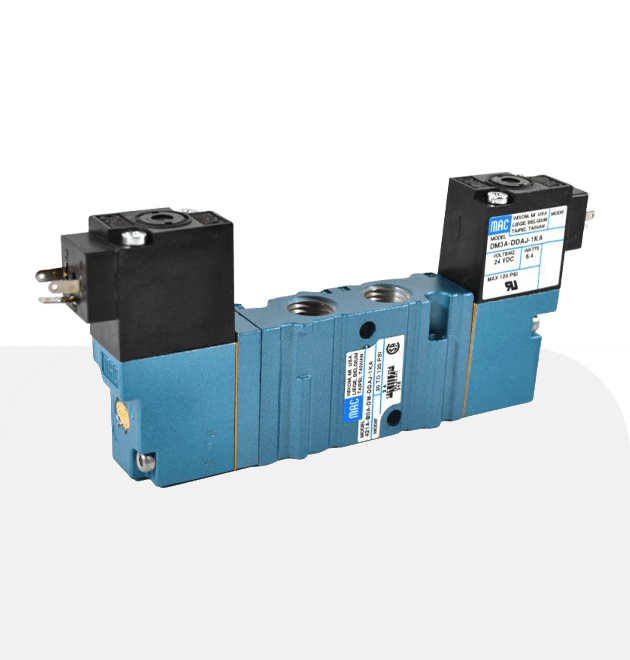

The MAC 400 Series is a 4-way spool valve pilot operated by a small direct operated 4-way solenoid valve – a one-off in air
valve manufacturing.
Mac Solenoid Valve Other Series
- Mac Small 4Way Valve 23 Series
- Mac Small 4Way Valve 24 Series
- Mac Small 4Way Valve 26 Series
- Mac Small 4Way Valve 27 Series
- Mac Small 4Way Valve 41 Series
- Mac Small 4Way Valve 42 Series
- Mac Small 4Way Valve 43 Series
- Mac Small 4Way Valve 44 Series
- Mac Small 4Way Valve 45 Series
- Mac Small 4Way Valve 46 Series
- Mac Small 4Way Valve 46L Series
- Mac Small 4Way Valve 47 Series
- Mac Small 4Way Valve 48 Series
Detail Specification
Port size | 1/8” - 1/4” |
Flow (Max) | 1.0 Cv |
Function | 5/2, 5/3 |
Configurations | Inline |
Mac Large 4 Way Air Valve
Spool Pneumatic Directional Control Valve 6500 Series

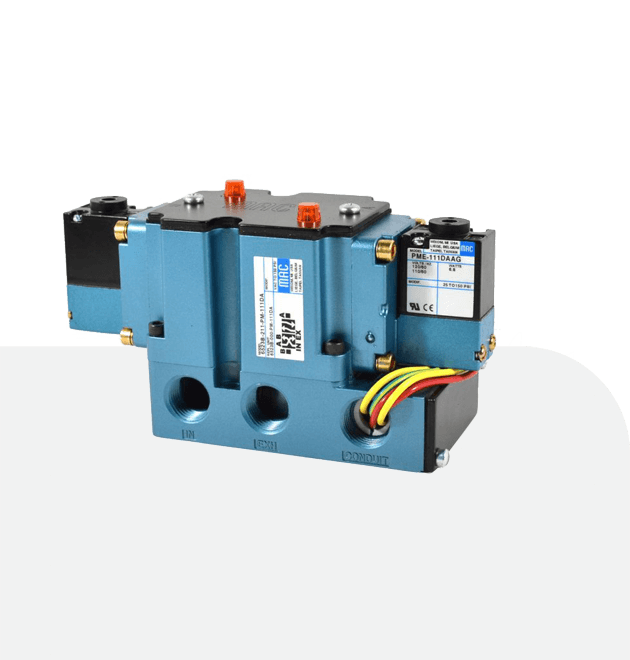

The MAC 6500 Series is a versatile 4-way solenoid piloted spool valve. This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations.
Features
- The patented MACSOLENOID® with its non-burn out feature on AC service
- Optional low watttage DC solenoids down to 1 watt
- Non-lubricated or lubricated service
Mac Solenoid Valve Other Series
Detail Specification
Port Sizes | 3.8"-3/4" |
Individual Mounting | sub-base non “plug-in” |
Flow (Max) | 5.1 Cv |
Function | 4/2 - 4/3 |
Mac 4 Way Large -6500 Series
Spool pneumatic directional control valve 6500 series
The MAC 6500 Series is a versatile 4-way solenoid piloted spool valve. This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations.
Features
- The patented MACSOLENOID® with its non-burn out feature on AC service
- Optional low watttage DC solenoids down to 1 watt
Mac Solenoid Other Series
Detail Specification
Port Sizes | 3.8"-3/4" |
Individual Mounting | sub-base non “plug-in” |
Flow (Max) | 5.1 Cv |
Function | 4/2 - 4/3 |
Mac Large 4 Way Air Valve
Direct Solenoid and Solenoid Pilot Operated Valves
The MAC 800 Series is a versatile 4-way solenoid piloted spool valve. This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations.
Features
- Use for lube or non-lube service
- Air/spring return on single solenoid valves
- Optional integral individual exhaust flow controls
- The patented MACSOLENOID® with its non-burn out feature on AC service
Mac Solenoid Valve Other Series
Detail Specification
Fluid | Compressed air, vacuum, inert gases |
Pressure range | Internal pilot : single operator and 3 positions : 20-150 PSI double operator : 10-150 PSI External pilot : vacuum to 200 PSI |
Pilot pressure | Single operator and 3 positions : 20-150 PSI Double operator : 10-150 PSI |
Temperature range | 0°F to 120°F (-18°C to 50°C) |
Flow (at 6 bar, ∆P=1bar) | 1/4" : (1.4 Cv) |
MAC Small 3 Way Air Valve
Direct Solenoid and Solenoid Pilot Operated Valves
The MAC 35 series is a direct solenoid operated 3-way poppet valve. It features a short stroke solenoid, a balanced poppet and powerful
return spring.
Features
- Optional surge suppression (M.O.V. or Diode) available
- Various solenoid enclosures and plug-in connectors
Mac Solenoid Valve Other Series
Detail Specification
Function | 3/2 NO-NC, 2/2 NO-NC |
Port size | 1/8” |
Flow (Max) | 0.17 Cv |
Individual mounting | inline |
MAC 3 Way Small-35 Series
Direct solenoid and solenoid pilot operated valves
The MAC 35 series is a direct solenoid operated 3-way poppet valve. It features a short stroke solenoid, a balanced poppet and powerful
return spring.
Features
- Manual overrides as standard.
- Extremely high cycle rate capability.
Mac Solenoid Other Series
Detail Specification
Function | 3/2 NO-NC, 2/2 NO-NC |
Port size | 1/8” |
Flow (Max) | 0.17 Cv |
Individual mounting | inline |
Mac Small 3 Way Air Valve
Direct Solenoid and Solenoid Pilot Operated Valves
design innovations.
Features
- Universal porting
- # 10-32 or M5 ports
- 10 mm direct operated
- High force MACSOLENOID®
Mac Solenoid Valve Other Series
Detail Specification
Pressure range | Vacuum to 120 PSI |
Fluid | Compressed air, vacuum, inert gases |
Temperature range | 0°F to 120°F (-18°C to +50°C) |
Flow | 4 W : (0.12 Cv) – 2.5 W : (0.10 Cv) – 1.8 W : (0.06 Cv) |
Mac Large 3 Way Air Valve
Direct Solenoid and Solenoid Pilot Operated Valves

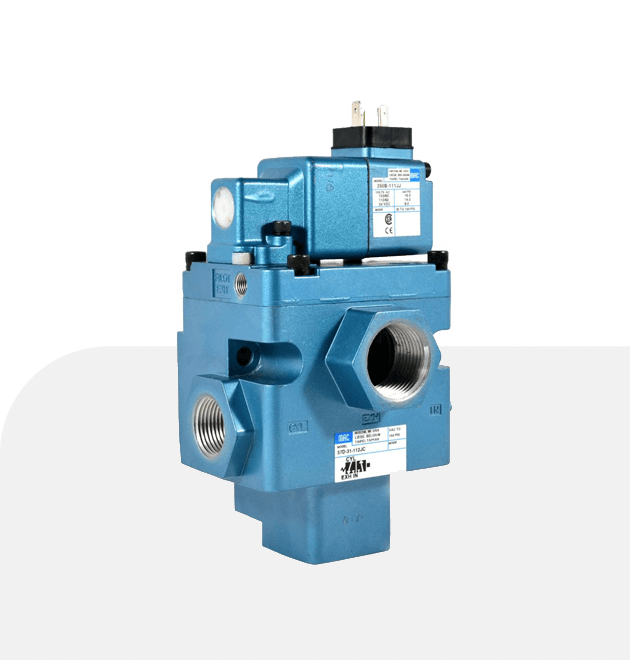

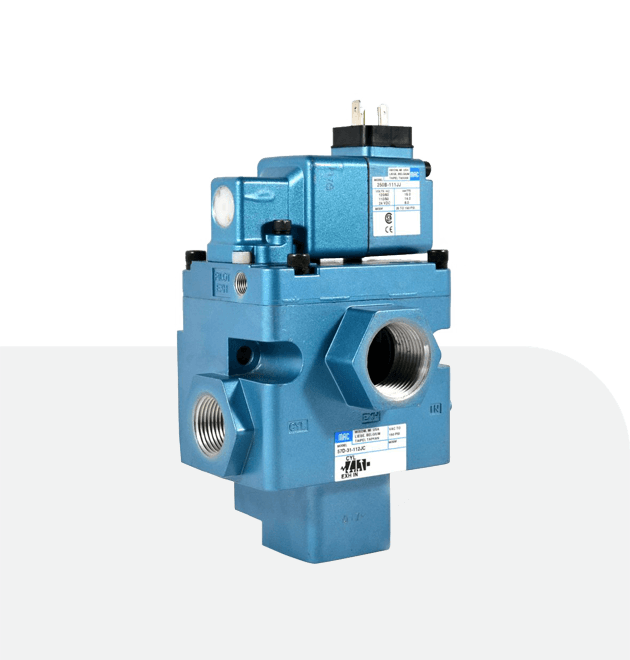

The MAC 57 Series is a 3-way balanced spool valve piloted by our 200 series (which means this large 3-way valve can also be ordered with the 200 series Hazardous Location version as a pilot – giving it the same standard).
Features
- The patented MACSOLENOID® with its non-burn out feature on AC service
- Seven valve functions in one valve
- Various types of manual operators and solenoid enclosures
Mac Solenoid Valve Other Series
Detail Specification
Port size | 1/2” - 3/4” - 1” |
Function | 3/2 NO-NC, 2/2 NO-NC |
Flow (Max) | 17.4 Cv |
Individual mounting | inline |
Mac 3 Way Large -57 Series
Direct solenoid and solenoid pilot operated valves
The MAC 57 Series is a 3-way balanced spool valve piloted by our 200 series (which means this large 3-way valve can also be ordered with the 200 series Hazardous Location version as a pilot – giving it the same standard).
Features
- The patented MACSOLENOID® with its non-burn out feature on AC service
- Seven valve functions in one valve
- Various types of manual operators and solenoid enclosures
Mac Solenoid Other Series
Detail Specification
Port size | 1/2” - 3/4” - 1” |
Function | 3/2 NO-NC, 2/2 NO-NC |
Flow (Max) | 17.4 Cv |
Individual mounting | inline |
Mac Large 3 Way Air Valve
Direct Solenoid and Solenoid Pilot Operated Valves

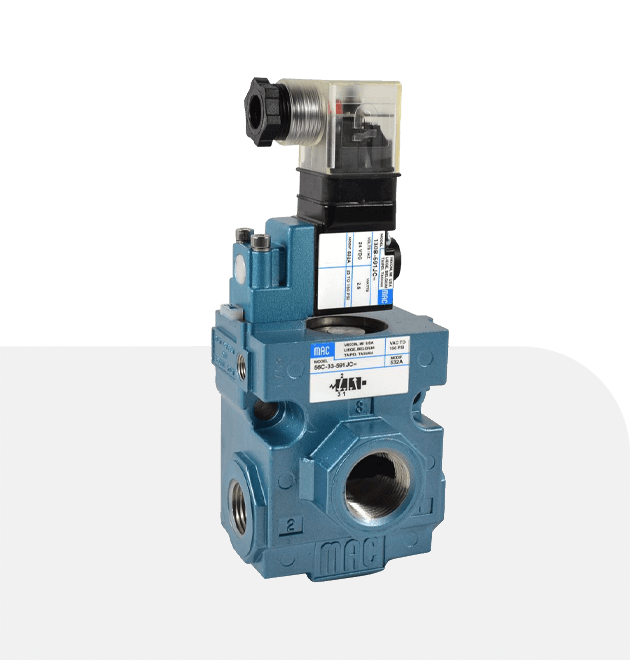

The MAC 56 Series is a 3-way balanced spool valve piloted by a small direct operated balanced poppet valve.
Features
- The patented MACSOLENOID® with its non-burn out feature on AC service.
- Seven valve functions in one valve.
- Balanced spool unaffected by back pressure in the exhaust or by inlet restrictions. May be plugged for 2-way operation.
- Use on lube or non-lube service.
Mac Solenoid Valve Other Series
Detail Specification
Port size | 3/8” - 1/2” - 3/4” |
Flow (Max) | 5.7 Cv |
Function | 3/2 NO-NC, 2/2 NO-NC |
Individual mounting | inline |
Mac Miniature 3
Way Air Valve
Direct Solenoid and Solenoid Pilot Operated Valves

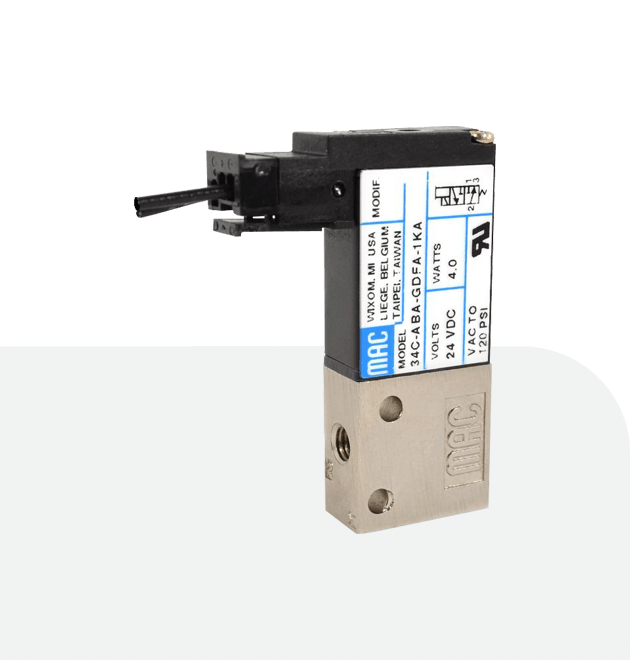

The Mac 34 series is a direct solenoid operated 3-way-10mm-poppet valve. A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and powerful
return spring.
Features
- Universal Porting
- #10-32 or M5 Ports
- 10 mm direct operated
- High Force MAC SOLENOID
Mac Solenoid Valve Other Series
Detail Specification
Port size | M3 |
Flow (Max) | 0.082 Cv |
Function | 3/2 NC |
Individual mounting | Inline |
Mac Miniature 3
Way -34 Series
Direct solenoid and solenoid pilot operated valves
The Mac 34 series is a direct solenoid operated 3-way – 10mm – poppet valve. A direct operated 3-way of this size with such high flow is unique to MAC due to patented design innovations.
Features
- Universal Porting
- #10-32 or M5 Ports
- 10 mm direct operated
- High Force MAC SOLENOID
Mac Solenoid Valve Other Series
Detail Specification
Port size | M3 |
Flow (Max) | 0.082 Cv |
Function | 3/2 NC |
Individual mounting | Inline |
Mac Miniature 4
Way Air Valve
Direct Solenoid and Solenoid Pilot Operated Valves

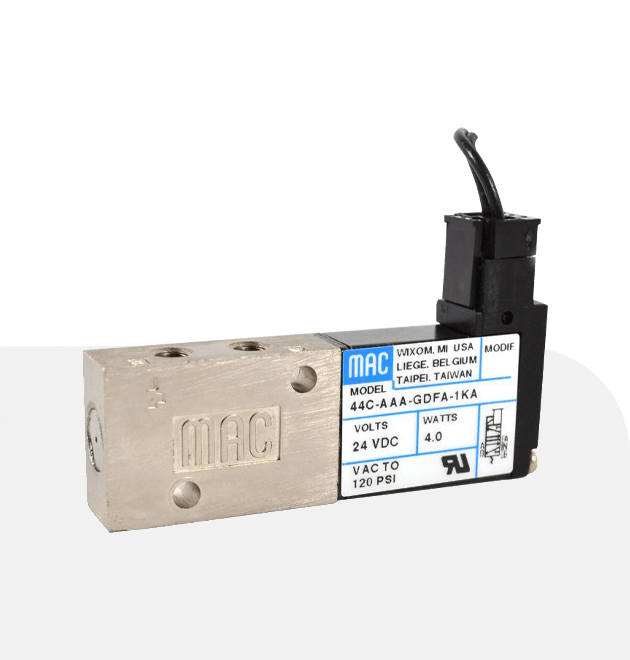

The MAC 44 Series is a direct solenoid operated 4-way-10mm-poppet valve. A direct operated 4-way of this size with such high flow is unique to MAC due to patented design innovations. It features an oval armature in the solenoid, a balanced poppet and conical seats.
Operational
- Powerful return spring
- Short stroke with high flow
- 10 mm valve, direct solenoid operated
- Manual operator standard on all valves
- Flow is specifically adjusted on each valve
Mac Solenoid Valve Other Series
Detail Specification
Port size | M5, # 10-32 |
Flow (Max) | 0.1 Cv |
Individual Mounting | Inline |
