Actuator

KEYSTONE
F89 ACTUATOR

Keystone F89 Pneumatic Quater-Turn Actuator

General Purpose / Hazardous Area

The Keystone F89 is a pneumatic quarter-turn actuator for general purpose and hazardous area applications.

Features
  • Direct mounting to all Keystone butterfly valve and ball valve
  • Pre-compressed spring design
Performance Data

The F89 actuator meets the EN15714-3 requirements and has been validated for a lifetime up to 500,000 cycles under the specified conditions.

Supply pressureUp to 8.3 bar
Temperature`-40°C to 150°C
TypeQuarter-Turn
End CapsCast aluminium (ESPC coated)
Actuator ValveISO and Keystone standard

Butterfly Valve

Keystone 60 Series
Butterfly Valve

Keystone Series 60 Butterfly Valve with Powered Actuator

The Keystone Series 60 is a heavy duty resilient seated butterfly valve with a cartridge seat design, available in a range of body, disc and seat materials to suit a variety of applications.

Features
  • Blowout-proof stems as a standard
  • Maximum flow and rangeabililty is achieved with the use of a streamlined disc
General Application

Ideally suited for many industrial applications such as food and beverage, pulp and paper, chemical, mining, water treatment, HVAC, power, and automotive where a heavy-duty resilient seated butterfly valve is required.

Material316 Stainless Steel, Aluminum Bronze, Buna-N, Cast Iron, Ductile Iron, Epdm Rubber, Teflon
Operating TemperatureUp to 350 F (180 C)
Process Connection Type150RF
StandardsAPI 609, ASME B16.34
Valve Size5 inch, NPS 10 / DN 250, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 20 / DN 500, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200

KEYSTONE VALVE
BUTTERFLY

SERIES 60

Keystone 60 Series
Butterfly Valve

Keystone Series 60 Butterfly Valve with Powered Actuator

The Keystone Series 60 is a heavy duty resilient seated butterfly valve with a cartridge seat design, available in a range of body, disc and seat materials to suit a variety of applications.

Features
  • Blowout-proof stems as a standard
  • Maximum flow and rangeabililty is achieved with the use of a streamlined disc
General Application

Ideally suited for many industrial applications such as food and beverage, pulp and paper, chemical, mining, water treatment, HVAC, power, and automotive where a heavy-duty resilient seated butterfly valve is required.

Material316 Stainless Steel, Aluminum Bronze, Buna-N, Cast Iron, Ductile Iron, Epdm Rubber, Teflon
Operating TemperatureUp to 350 F (180 C)
Process Connection Type150RF
StandardsAPI 609, ASME B16.34
Valve Size5 inch, NPS 10 / DN 250, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 20 / DN 500, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200

KEYSTONE VALVE
BUTTERFLY

SERIES 60

KEYSTONE VALVE
BUTTERFLY

COMPOSEAL

Keystone Composeal Resilient Seated Butterfly Valve

Keystone Composeal Seated with Powered Actuator

The Keystone CompoSeal resilient seated butterfly valve features a valve body and disc in highly engineered composite material providing excellent internal and external.

Features
  • No need for flange gaskets
  • Composite hand lever available
General Application

Since the entire valve exists of high engineered composite materials, it is perfectly suited for a wide range of applications such as; building services, hot water applications, industrial waste water and industrial water treatment like purification, ozone or demineralization.

MaterialComposition Fiber
Operating TemperatureLess than 150 C
Shuttoff ClassZero Leakage
Valve SizeNPS 10 / DN 250, NPS 1-1/2 / DN 40, NPS 12 / DN 300, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200
Process Connetion TypePN16

Keystone Figure 360/362 and 370/372 K-LOK

Keystone High Performance Butterfly Valve with
Powered Actuator

The Keystone K-LOK Figure 360/362 and 370/372 is a high performance butterfly valve rated to ASME Class 150 and Class 300 that provide bi-diectional, drop-tight closure.

Features
  • Integrally cast mounting pad provides direct mounting of many actuators
  • Extended neck allows for two inches of pipeline insulation
General Application
  • Airport refueling
  • Hydrocarbon processing
  • Chemical processing
  • Purified gas
  • Sour gas
Material316 Stainless Steel, Carbon Steel, Duplex, Monel, Stainless Steel, Steel, Super Duplex, Teflon
Process Connection TypeCL150RF, CL300RF
Seat/Seal TypeHigh performance, Metal, Resilient, Soft, Soft Seal
StandardsAPI 609, ASME B16.34
Valve SizePS 10 / DN 250, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 2 / DN 50, NPS 20 / DN 500, NPS 2-1/2 / DN 65, NPS 24 / DN 600, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150

KEYSTONE VALVE
BUTTERFLY
K-LOK 360/362 AND 370/372

Keystone Figure 360/362 and 370/372 K-LOK

Keystone High Performance Butterfly Valve with
Powered Actuator

The Keystone K-LOK Figure 360/362 and 370/372 is a high performance butterfly valve rated to ASME Class 150 and Class 300 that provide bi-diectional, drop-tight closure.

Features
  • Integrally cast mounting pad provides direct mounting of many actuators
  • Extended neck allows for two inches of pipeline insulation
General Application
  • Airport refueling
  • Hydrocarbon processing
  • Chemical processing
  • Purified gas
  • Sour gas
Material316 Stainless Steel, Carbon Steel, Duplex, Monel, Stainless Steel, Steel, Super Duplex, Teflon
Process Connection TypeCL150RF, CL300RF
Seat/Seal TypeHigh performance, Metal, Resilient, Soft, Soft Seal
StandardsAPI 609, ASME B16.34
Valve SizePS 10 / DN 250, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 2 / DN 50, NPS 20 / DN 500, NPS 2-1/2 / DN 65, NPS 24 / DN 600, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150

KEYSTONE VALVE
BUTTERFLY
K-LOK 360/362 AND 370/372

KEYSTONE VALVE
BUTTERFLY

FIGURE 129/139

Keystone Figure 129/139 Butterfly Valve

Figure 129/139 Butterfly Valve with Powered Actuator

The Keystone Figure 129/139 is a heavy duty resilient seated butterfly valve featuring a steel reinforced cartridge design seat.

Features
  • Heavy-duty, corrosion-resistant top bushing absorbs actuator side thrust loads
General Applications

With its metal-reinforced resilient seat, makes it ideally suited for most process and vacuum applications.

  • Liquids
  • Gases
  • Bulk handling
Material316 Stainless Steel, 316L Stainless Steel, Aluminum Bronze, Buna-N, Carbon Steel, Cast Iron, Ductile Iron, Epdm Rubber, Monel, Stainless Steel
Operating TemperatureStandard Temperature (-40 - 250F)
ShutoffZero Leakage
StandardsAPI 609, ASME B16.34
Valve SizeNPS 10 / DN 250, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 20 / DN 500, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200

Keystone Figure 990/920 Butterfly Valve

Figure 990/920 Butterfly Valve with Powered Actuator

The Keystone Figure 990/920 is a split body, thin disc resilient seated butterfly valve designed for high flow and modulating service.

Features
  • Rounded polished disc edge gives full concentric sealing, lower torques, longer seat life and tight shut-off
  • Bi-directional, self-adjusting double V-cup stem seals prevent external contaminants from entering the valve
  • Split body design enables easy field replacement of seat and disc/stem and permits direct mounting of Keystone actuators without the use of
    couplings or brackets
Material316 Stainless Steel, Buna-N, Cast Iron, Ductile Iron, Duplex, Epdm Rubber, Hastelloy, Monel, Super Duplex, Teflon, Titanium
Operating TemperatureUp to 250 F (120 C)
MediaSpecialty Gases, Liquids, Air, Inert Gas, Water, Air
StandardsAPI 609, ASME B16.34
Valve SizeNPS 1-1/2 / DN 40, NPS 14 / DN 350, NPS 16 / DN 400, NPS 8 / DN 200, NPS 18 / DN 450, NPS 2 / DN 50, NPS 20 / DN 500, NPS 6 / DN 150, NPS 10 / DN 250, NPS 1 / DN 25, 5 inch, NPS 4 / DN 100, NPS 12 / DN 300, NPS 2-1/2 / DN 65, NPS 3 / DN 80

KEYSTONE VALVE
BUTTERFLY

FIGURE 990/920

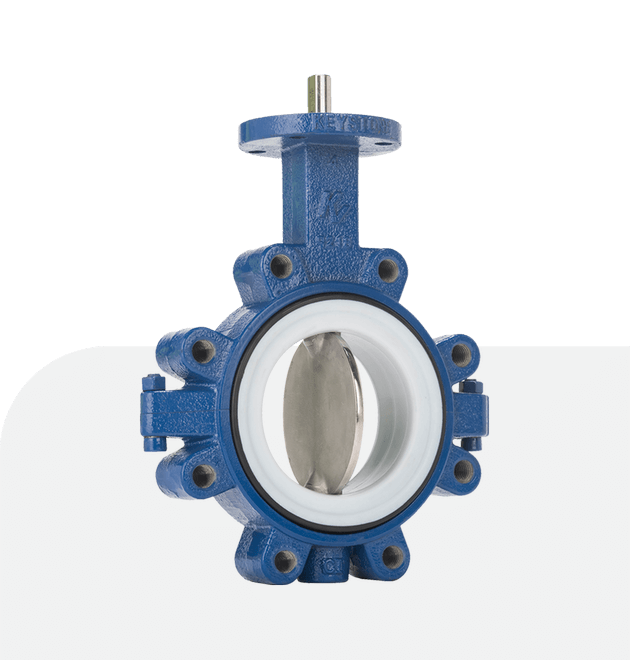

Keystone Figure 990/920 Butterfly Valve

Figure 990/920 Butterfly Valve with Powered Actuator

The Keystone Figure 990/920 is a split body, thin disc resilient seated butterfly valve designed for high flow and modulating service.

Features
  • Rounded polished disc edge gives full concentric sealing, lower torques, longer seat life and tight shut-off
  • Bi-directional, self-adjusting double V-cup stem seals prevent external contaminants from entering the valve
  • Split body design enables easy field replacement of seat and disc/stem and permits direct mounting of Keystone actuators without the use of
    couplings or brackets
Material316 Stainless Steel, Buna-N, Cast Iron, Ductile Iron, Duplex, Epdm Rubber, Hastelloy, Monel, Super Duplex, Teflon, Titanium
Operating TemperatureUp to 250 F (120 C)
MediaSpecialty Gases, Liquids, Air, Inert Gas, Water, Air
StandardsAPI 609, ASME B16.34
Valve SizeNPS 1-1/2 / DN 40, NPS 14 / DN 350, NPS 16 / DN 400, NPS 8 / DN 200, NPS 18 / DN 450, NPS 2 / DN 50, NPS 20 / DN 500, NPS 6 / DN 150, NPS 10 / DN 250, NPS 1 / DN 25, 5 inch, NPS 4 / DN 100, NPS 12 / DN 300, NPS 2-1/2 / DN 65, NPS 3 / DN 80

KEYSTONE VALVE
BUTTERFLY

FIGURE 990/920

KEYSTONE VALVE
BUTTERFLY

K-LOK
SERIES 36/37

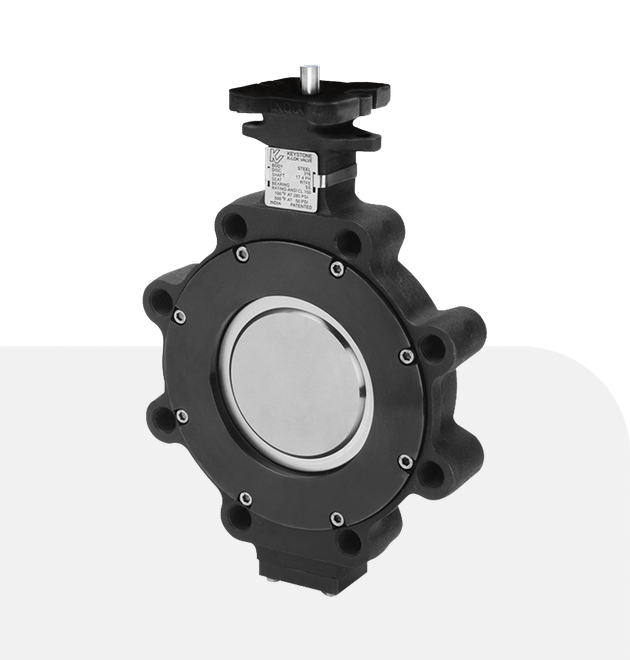

Keystone K-LOK Series 36/37 Butterfly Valve

Series 36/37 High Performance Butterfly Valve with Powered Actuator

The Keystone K-LOK® Series 36/37 is a high performance butterfly valve rated to ASME Class 150 and 300, available in wafer, lugged and flanged style.

Features
  • Blow-out resistant shaft is standard on all valves for increased safety
  • Rocker-shaped gland bridge compensates for uneven adjustment of gland nuts reducing packing leaks
General Applications
  • Modulating service
  • Power and utilities
  • Refrigeration
  • Alumina refining
Material316 Stainless Steel, 316L Stainless Steel, Carbon Steel, Duplex, Stainless Steel, Super Duplex
Process Connection Type150RF, 300RF
StandardsAPI 609, ASME B16.34
Shutoff ClassZero Leakage
Valve SizePS 10 / DN 250, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 2 / DN 50, NPS 20 / DN 500, NPS 2-1/2 / DN 65, NPS 24 / DN 600, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150

Keystone Optiseal Resilient Seated Butterfly Valve

Figure 14/15/16/17 Butterfly Valve with Powered Actuator

The Keystone OptiSeal is a resilient seated butterfly valve for general purpose, food and beverage processing, industrial applications and chemical applications when configured with a PTFE lined seat, disc and stem.

Features
  • Top bushing absorbs actuator side thrust loads
  • Extended body neck allows pipe insulation
General Application
  • Food & beverage processing
  • Dry bulk conveying
  • Paper mills
  • Slurry handling etc
End ConnectionWafer, Lugged
ApplicationWinemaking, Beverages, Automotive, Air Circulation
MaterialSuper Duplex, Hastelloy, Epdm Rubber, Duplex, Cast Iron, Carbon Steel, Buna-N, 316L Stainless Steel, 316 Stainless Steel
Operating TemperatureUp to 250 F (120 C)
Valve SizeNPS 20 / DN 500, NPS 10 / DN 250, NPS 8 / DN 200, NPS 6 / DN 150, NPS 4 / DN 100, NPS 3 / DN 80, NPS 24 / DN 600, NPS 2-1/2 / DN 65, NPS 18 / DN 450, NPS 16 / DN 400, NPS 14 / DN 350, NPS 1-1/2 / DN 40

KEYSTONE VALVE
BUTTERFLY

OPTISEAL

Keystone Optiseal Resilient Seated Butterfly Valve

Figure 14/15/16/17 Butterfly Valve with Powered Actuator

The Keystone OptiSeal is a resilient seated butterfly valve for general purpose, food and beverage processing, industrial applications and chemical applications when configured with a PTFE lined seat, disc and stem.

Features
  • Top bushing absorbs actuator side thrust loads
  • Extended body neck allows pipe insulation
General Application
  • Food & beverage processing
  • Dry bulk conveying
  • Paper mills
  • Slurry handling etc
End ConnectionWafer, Lugged
ApplicationWinemaking, Beverages, Automotive, Air Circulation
MaterialSuper Duplex, Hastelloy, Epdm Rubber, Duplex, Cast Iron, Carbon Steel, Buna-N, 316L Stainless Steel, 316 Stainless Steel
Operating TemperatureUp to 250 F (120 C)
Valve SizeNPS 20 / DN 500, NPS 10 / DN 250, NPS 8 / DN 200, NPS 6 / DN 150, NPS 4 / DN 100, NPS 3 / DN 80, NPS 24 / DN 600, NPS 2-1/2 / DN 65, NPS 18 / DN 450, NPS 16 / DN 400, NPS 14 / DN 350, NPS 1-1/2 / DN 40

KEYSTONE VALVE
BUTTERFLY

OPTISEAL

KEYSTONE VALVE
BUTTERFLY

FIGURE 221/222

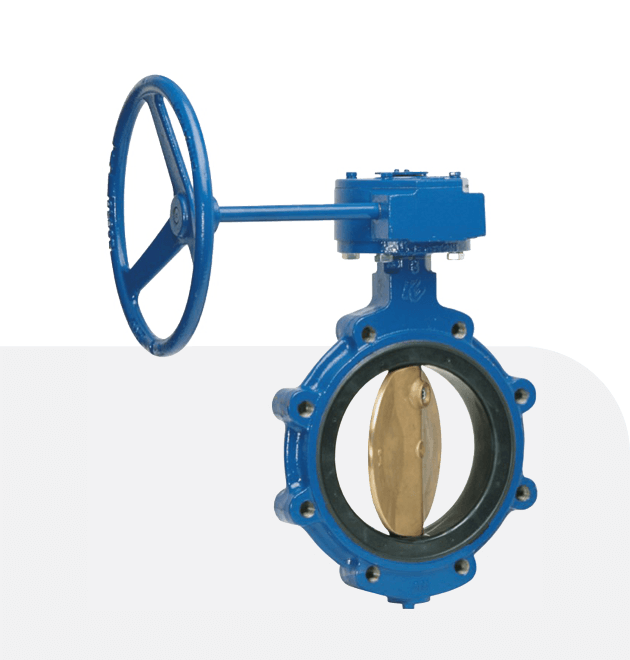

Keystone Figure 221/222 Butterfly Valve

Figure 221/222 Butterfly Valve with Powered Actuator

The Keystone Figure 221/222 is an economical bonded resilient seated butterfly valve for bi-directional and end-of-line service available in both wafer and lugged style.

Features
  • Bubble tight shut-off at full rated pressure in both directions
  • Top and bottom bearings absorbs side thrust loads
General Application

Ideal for building services and irrigation applications that require shut-off control. The valve has a moulded in seat and can be used in full vacuum service.

Material304 Stainless Steel, 316 Stainless Steel, Buna-N, Cast Iron, Epdm Rubber
Operating TemperatureUp to 250 F (120 C)
Process Connection Type150RF
StandardsAPI 609, ASME B16.34
Valve Size5 inch, NPS 10 / DN 250, NPS 12 / DN 300, NPS 2 / DN 50, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200

Keystone Series GR Resilient Seated Butterfly Valve

Series GR Butterfly Valve with Powered Actuator

The Keystone Series GR is a general purpose resilient seated butterfly valve available in flanged, lugged or wafer body style for any service where drop-tight shut-off and maximum flow area is required.

Features
  • Shaft seals prevent moisture penetrating into the shaft area
  • The seat is field replaceable and fully isolates the body and shaft from the flow
General Application

Water, air, dry bulk conveying etc. These valves are for any service where a drop-tight shut-off with maximum flow area is required.

SizesDN 50 - 900 (NPS 2 - 36)
Reinforced Seat16 bar DN 350 - 600 (230 psi NPS 14 - 24)
Vacuum Service0.4 bar (5.8 psia)
Temperature`-40°C to +160°C (-40 °F to +320°F)
Flange AccomodationPN 6/10/16, 125/150, JIS 10K, BS Table E, AS4087 PN 16, AS2129

KEYSTONE VALVE
BUTTERFLY

SERIES GR

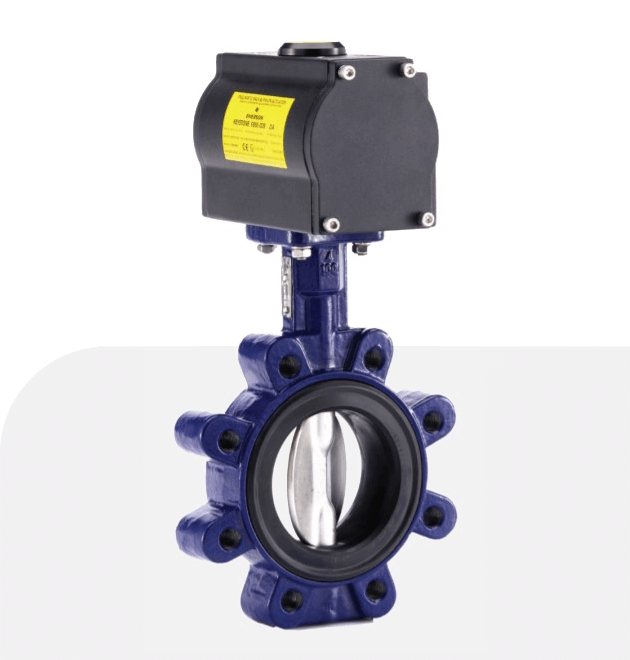

Keystone Series GR Resilient Seated Butterfly Valve

Series GR Butterfly Valve with Powered Actuator

The Keystone Series GR is a general purpose resilient seated butterfly valve available in flanged, lugged or wafer body style for any service where drop-tight shut-off and maximum flow area is required.

Features
  • Shaft seals prevent moisture penetrating into the shaft area
  • The seat is field replaceable and fully isolates the body and shaft from the flow
General Application

Water, air, dry bulk conveying etc. These valves are for any service where a drop-tight shut-off with maximum flow area is required.

SizesDN 50 - 900 (NPS 2 - 36)
Reinforced Seat16 bar DN 350 - 600 (230 psi NPS 14 - 24)
Vacuum Service0.4 bar (5.8 psia)
Temperature`-40°C to +160°C (-40 °F to +320°F)
Flange AccomodationPN 6/10/16, 125/150, JIS 10K, BS Table E, AS4087 PN 16, AS2129

KEYSTONE VALVE
BUTTERFLY

SERIES GR
