Ball Valve

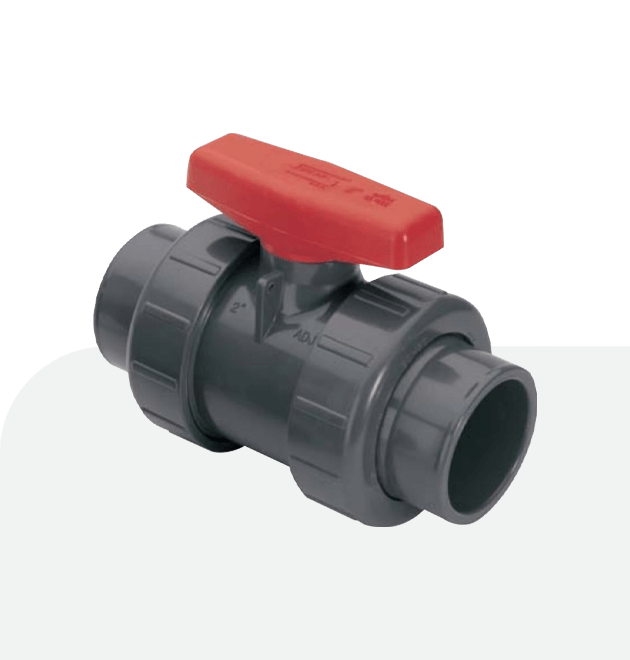

Spears PVC Ball Valve
True Union 2000
Standard Ball Valve
All thermoplastic ball valves shall be True Union 2000 Standard type manufactured to ASTM F 1970 and constructed from PVC Type I, ASTM D 1784 Cell Classification 12454 or CPVC Type IV, ASTM D 1784 Cell Classification 23447, All O-rings shall be EPDM or FKM.
Features
- High Impact Polypropylene Handle
- Spears® Safe-T-Blocked® Seal Carrier
- Schedule 80 Full-Bore Design
Spears Other Type
- Tee – Style “Zero Dead-Leg” Ball Valve
- True Union Ball Valve (Reguler Style)
- True Union 2000 Industrial Retrofit Ball Valve – Replaces Other Brand Valve
Detail Specification
| Pressure Rating | 73°F (23°C), Water |
| Maximum Service Temperature | PVC = 140°F (60°C) |
