Kaneko Solenoid valve
Kaneko Sangyo Solenoid Valve

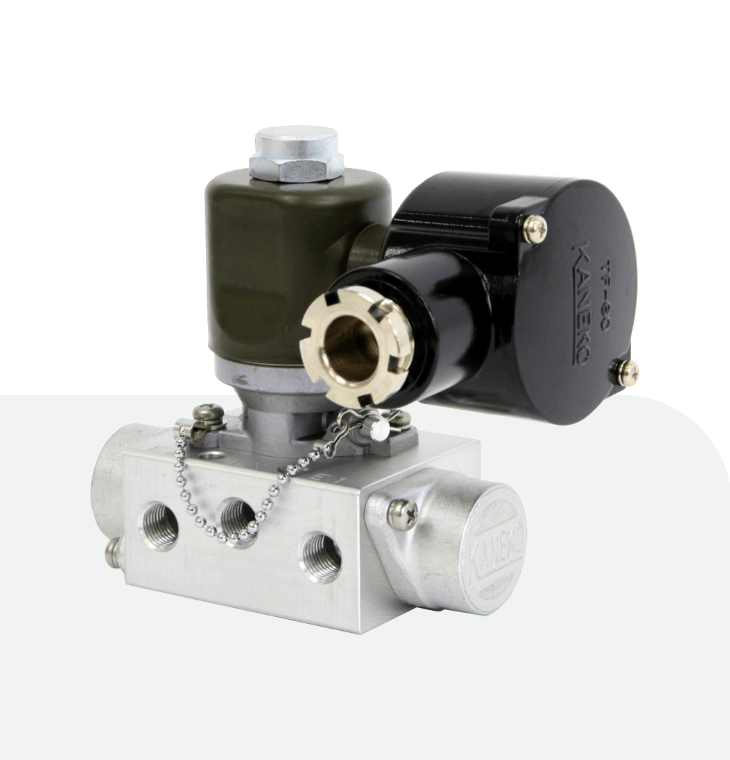

Kaneko M15G Series Four Way Single Solenoid Valve
This Kaneko M15G valve is 4 Way Solenoid Valve, pilot operated, 2 positions, Double exhausts for pneumatic pressure, to be used for automatic control of double acting power cylinder or diaphragm valve and other various pneumatic pressure operating devices.
Kaneko Solenoid Valve Features :
- Operates without supply lubricating Oil
- Corrosion proof treatment
Kaneko Valve Other Series :
- Kaneko Four Way Solenoid Valve MT16G
- Kaneko Four Way Solenoid Valve MB15G
- Kaneko Four Way Solenoid Valve MK15G
- Kaneko Four Way Solenoid Valve M65G
- Kaneko Four Way Solenoid Valve M80G
Detail Specification
| Fluid | Cleanair" |
| Working pressure | 0.1 ～ 0.99MPa |
| Duty cycle | 100% Continouly rated |
| Fluid temperature | -20 ～ 60℃ |
| Ambient temperature | -20 ～ 60℃ |
| Operating Volta range | +10，-15％ |
| Standard Voltage | See below |
