ASCO
SOLENOID VALVE

SERIES 353

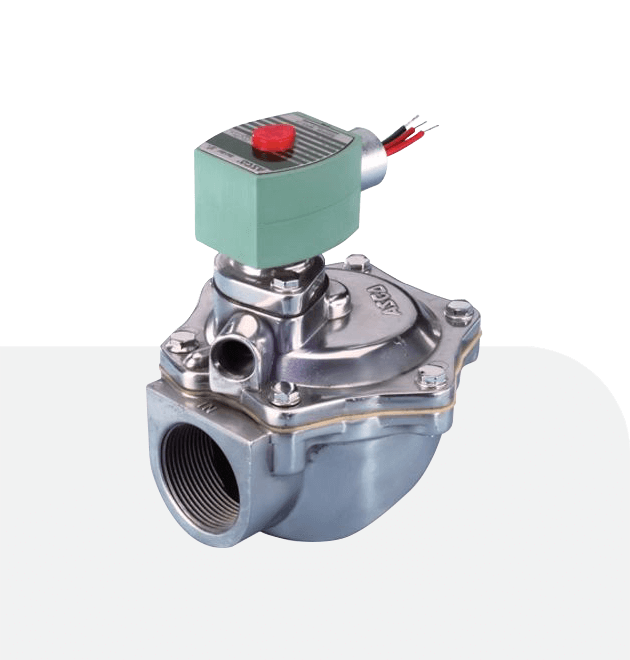

Asco Series 353
Solenoid Valve

Asco Series 353
Solenoid Pulse Valve

The ASCO Series 353 is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems.

Asco Series 353 Solenoid Figure
  • Asco Series 353 Solenoid Fig. 8353G041AC110/50D
  • Asco Series 353 Solenoid Fig. 8353G041AC120/60,110/50D
  • Asco Series 353 Solenoid Fig. 8353G041AC120/60D
  • Asco Series 353 Solenoid Fig. 8353G052AC110/50D
  • Asco Series 353 Solenoid Fig. 8353G052AC120/60,110/50D
Valve Actuation SolenoidAir Pilot, Air Operated
Body MaterialAluminum
Pipe/Port Size3/4 "; 1 "; 1 1/4 "; 1 1/2 "; 2 "; 2 1/2 "; 3 "
Port TypeNPTF, G-Thread, Quick Mount Clamp Connection
MediaAir
FlowFrom 10 to 20 Cv, from 35 to 57 Cv, from 60 to 140 Cv
Temperature-40°F to 140°F, -4°F to 284°F
