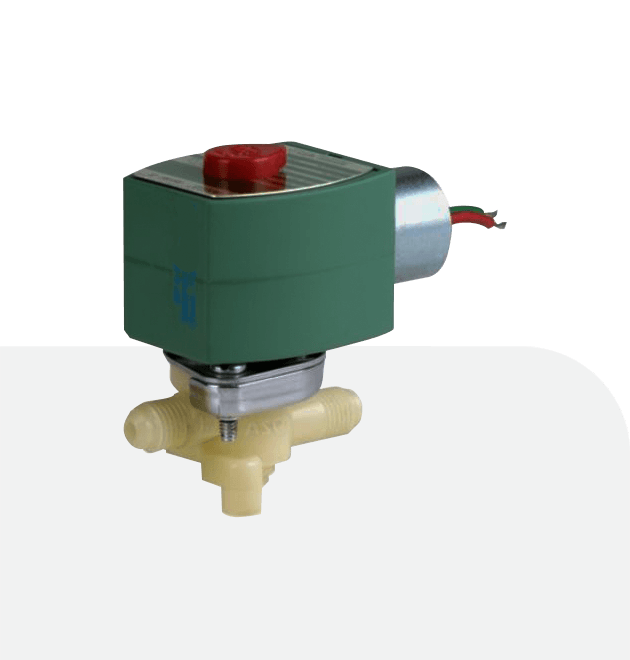

Asco Series 260 Plastic Body
Solenoid Valve
Asco Series 260
Solenoid Valve
The ASCO Series 260 is a corrosion-resistant, plastic body solenoid valve. The valves are available with compression fitting ends for metal or plastic tubes to save installation cost. The 260 Series is suitable for analytical and diagnostic equipment, life science, and press room and metal stamping applications.
Asco Series 260 Solenoid Figure
- Asco Series 260 Solenoid Fig. 8260G071AC110/50D
- Asco Series 260 Solenoid Fig. 8260G071AC120/60,110/50D
- Asco Series 260 Solenoid Fig. 8260G071AC120/60D
Detail Specification
Valve Actuantion | Solenoid |
Body Material | Engineered Plastics |
Media | Air, Inert Gas |
Pipe / Port Size | 1/4 " |
Max Differential / Max Operating Pressure | Vacuum to 150 PSIG |
Port Type | Barb; NPTF |
Operating Environment | Indoor; Outdoor |
