VALVE

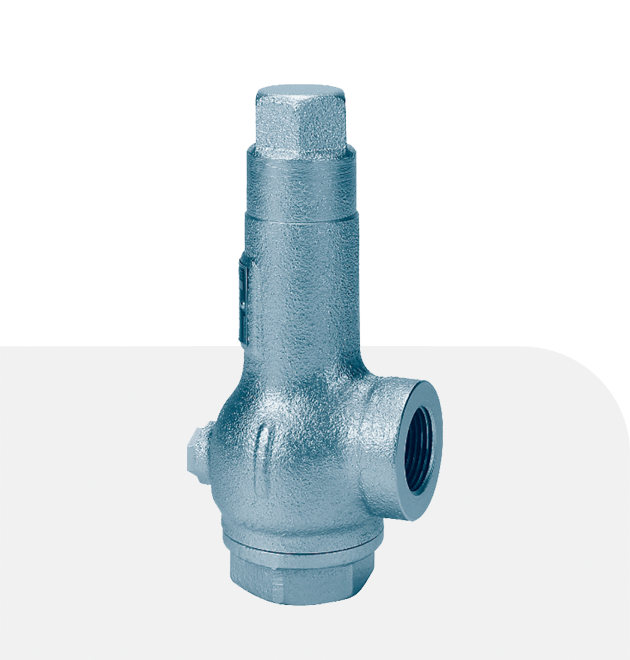

Fushiman RPF13 Safety
Relief Valve
RPF13 Safety Relief Valve
FUSHIMAN, which has been an expert in the field of fluid control techniques for over one century, has a history which is said to effectively reflect the history of the Japanese valve industry itself. High grade products which contributed to industrial development have been highly evaluated over decades.
Features
- Lift Type
- Easy adjustment by single ring
Other Model Fushiman Valve
Detail Specification
| Size | 15〜40A |
| Max. temperature | 205, 220℃ |
| Material | BodyーFC Valve disc/seatーSUS |
| Connection | Screwed |

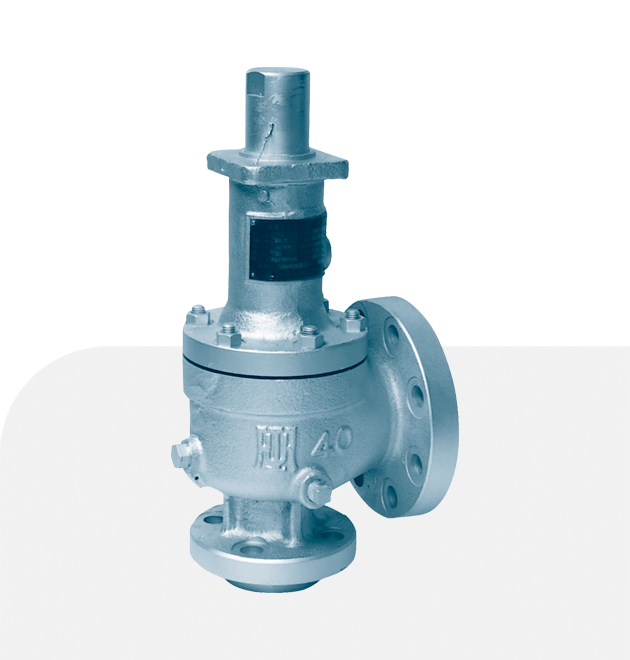

Fushiman RPN6B Safety
Relief Valve
RPN6B Safety Relief Valve
Use the following chart to select the suitable valve size. When viscosity is over 20㎜2/s, flow rate should be corrected.
Features
- Full bore, large capacity
- High erosion-resistance due to STELLITE-faced valve disc and valve seat
- Easy adjustment by single ring
- Simple construction for easy maintenance
Other Type Fushiman Valve
Detail Specification
| Size | 25〜200A |
| Max. temperature | 205, 220, 300℃ |
| Material | BodyーFC, SCPH, SCS Valve disc/seatーSUS |
| Connection | Flanged |
Fushiman RPN6B Safety
Relief Valve
RPN6B Safety Relief Valve
Use the following chart to select the suitable valve size. When viscosity is over 20㎜2/s, flow rate should be corrected.
Features
- Full bore, large capacity
- High erosion-resistance due to STELLITE-faced valve disc and valve seat
- Easy adjustment by single ring
- Simple construction for easy maintenance
Other Type Fushiman Valve
Detail Specification
| Size | 25〜200A |
| Max. temperature | 205, 220, 300℃ |
| Material | BodyーFC, SCPH, SCS Valve disc/seatーSUS |
| Connection | Flanged |

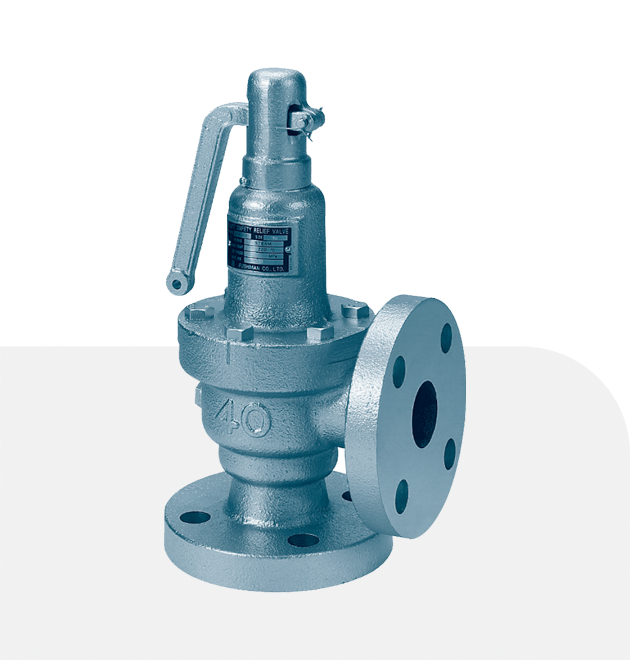

Fushiman RPF12 Safety
Relief Valve
RPF12 Safety Relief Valve
FUSHIMAN, which has been an expert in the field of fluid control techniques for over one century, has a history which is said to effectively reflect the history of the Japanese valve industry itself. High grade products which contributed to industrial development have been highly evaluated over decades, due to the knowledge accumulated from long-term manufacturing experience
Features
- Lift Type
- Easy adjustment by single ring
Other Fushiman Safety Relief Valve
Detail Specification
| Size | 15〜80A |
| Max. temperature | 205, 220℃ |
| Material | BodyーFC, SCPH, SCS Valve disc/seatーSUS |
| Connection | Flanged |
Fushiman PPD41B-3 Pressure Reducing Valve
PPD41B-3 Pressure Reducing Valve For Gases
Negligible influence is exerted by inlet pressure change due to the use of a pressure balancing construction. A valve disc made of synthetic rubber ensures tight shut off when closed. For the control of highly precise pressure.
Other Fushiman Pressure Valve
Detail Specification
| Size | 15〜25A |
| Max. temperature | 80℃ |
| Material | BodyーCAC, SCS, Valve discーSUS with Synthetic rubber |
| Connection | Screwed, Flanged |
Fushiman PPD41B-3 Pressure Reducing Valve
PPD41B-3 Pressure Reducing Valve For Gases
Negligible influence is exerted by inlet pressure change due to the use of a pressure balancing construction. A valve disc made of synthetic rubber ensures tight shut off when closed. For the control of highly precise pressure.
Other Fushiman Pressure Valve
Detail Specification
| Size | 15〜25A |
| Max. temperature | 80℃ |
| Material | BodyーCAC, SCS, Valve discーSUS with Synthetic rubber |
| Connection | Screwed, Flanged |

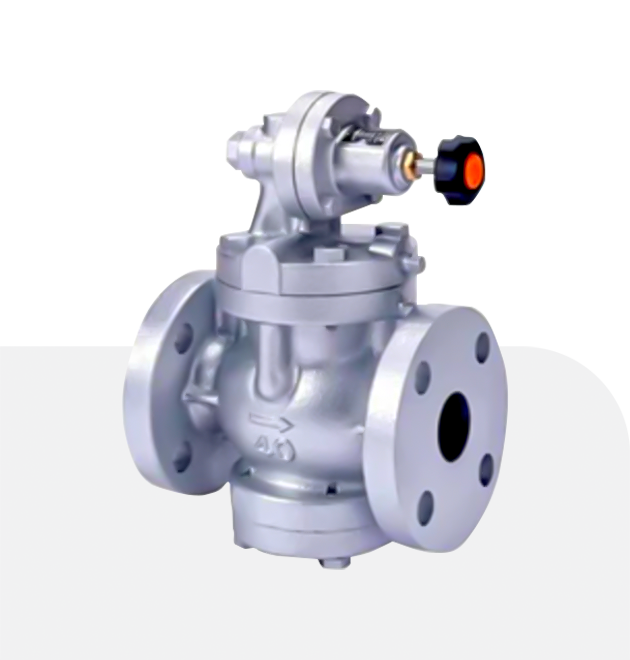

Fushiman P260 Pressure Reducing Valve
P260 Pressure Reducing
For Steam
In the event that the inlet pressure or the outlet pressure is not constant but stays within range, select the minimum difference in pressure.
Features
- For steam, most reputable Pressure Reducing Valve
- Wide range of sizes from 15A to 250A
- No chattering, No vibration even for High-Low differential pressure.
- Light and compact
Other Fushiman Pressure Valve
Detail Specification
| Size | 15〜250A |
| Max. temperature | 184, 220, 240, 260, 300℃ |
| Material | BodyーFC, FCD, SCPH, SCS Valve disc/seatーSUS |
| Connection | Flanged |

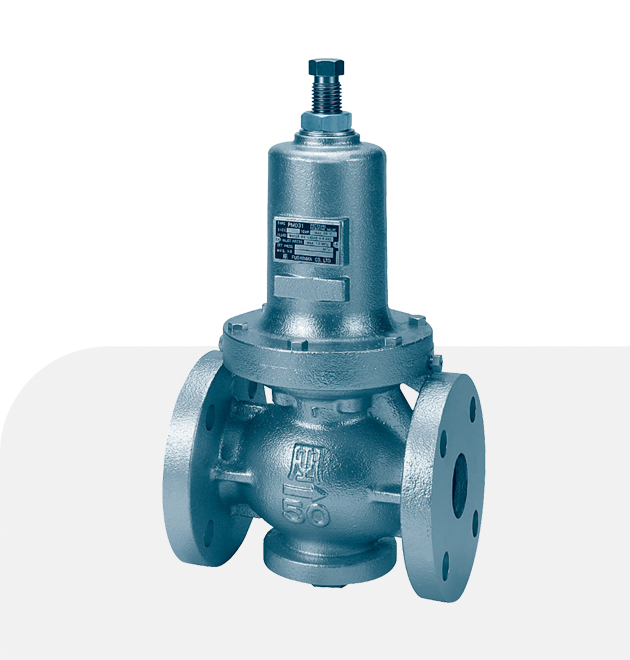

Fushiman PMD31
Pressure Reducing Valve
PMD31 Pressure Reducing Valve For Non-Corosive Liquid
Use the following chart to select the suitable valve size. When viscosity is over 20㎜2/s, flow rate should be corrected.
Features
- Stable operation
- Free from any influence of inlet pressure fluctuation
- No leakage
Other Fushiman Pressure Valve
Detail Specification
| Size | 15〜150A |
| Max. temperature | 80℃ |
| Material | BodyーFC, SCPH, SCS Valve discーSynthetic rubber |
| Connection | Flanged |
Fushiman PMD31
Pressure Reducing Valve
PMD31 Pressure Reducing Valve For Non-Corosive Liquid
Use the following chart to select the suitable valve size. When viscosity is over 20㎜2/s, flow rate should be corrected.
Features
- Stable operation
- Free from any influence of inlet pressure fluctuation
- No leakage
Other Fushiman Pressure Valve
Detail Specification
| Size | 15〜150A |
| Max. temperature | 80℃ |
| Material | BodyーFC, SCPH, SCS Valve discーSynthetic rubber |
| Connection | Flanged |
