Temperature Capabilities -20 to 150°F / -30 to 66°C. Maximum Allowable Inlet Pressure Emergency: 175 psig / 12.1 bar
Material Types Cast Iron, WCC Steel or CF8M Stainless Steel. Maximum Outlet Pressure 75 psig / 5.2 bar
Body Sizes NPT: NPS 1. Maximum Inlet Pressure 1480 psig / 102 bar
Body Size and End Connection Style 1/2-inch NPT. Temperature Capabilities -20° to 150°F / -29° to 66°C
Body Sizes NPS 1, 2, 3, 4, 6, 8 / DN 25, 50, 80, 100, 150, 200. End Connections CL150 RF, CL300 RF, CL600 RF, NPT, CL125 FF, CL250 RF, SWE, and BWE
Temperature Capabilities -20°F to 150°F / -29° to 66°C. Maximum Outlet (Casing) Pressure 15 psig / 1,0 bar
Body Size NPS 1 / 1.5 / 2 / 3 / 4 | DN 25 / 40 / 50 / 80 / 100. Maximum Temperature 353° to 600°F / 178° to 316°C
Body Sizes and End Connection Styles 1/2 NPT. Temperature Capabilities -20° to 160°F / -29° to 71°C
Outlet Pressure Ranges 9 to 20-inches w.c. / 22 to 50 mbar. Maximum Inlet Pressure Maximum Inlet Pressure: 10 psig / 0,69 bar Emergency Inlet Pressure: 50 psig / 3,4 bar

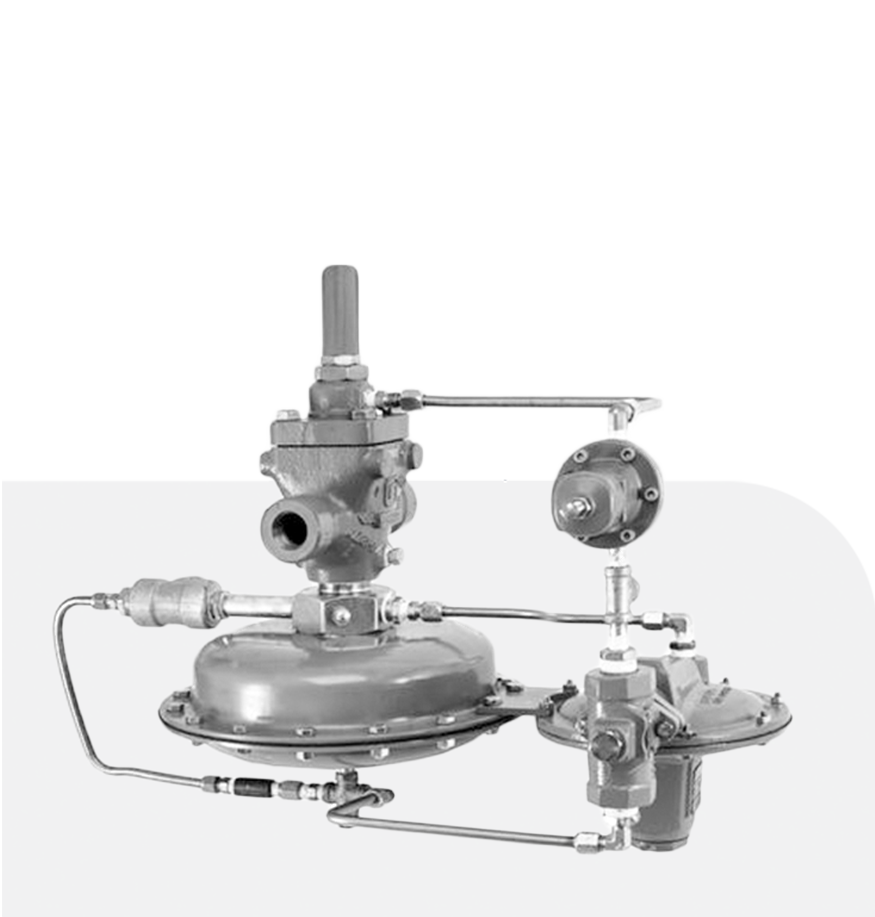

Outlet Pressure Ranges -5 inches w.c. to 1.5 psig / -12 to 0.10 bar. Maximum Inlet Pressure 200 psig / 13.8 bar
Outlet Pressure Ranges -3-inches w.c. to 5 psi / 7 to 345 mbar. Maximum Inlet Pressure 250 psig / 17,2 bar
Maximum Operating Inlet Pressure 125 psig / 8,6 bar. Temperature Capabilities -20° to 150°F / -29° to 66°C
