Bonney Forge API 602
Forged Steel Valve

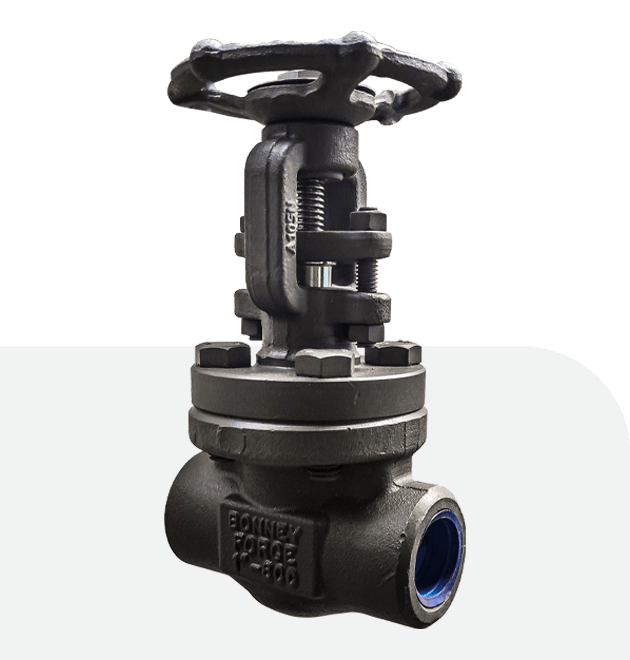

Forged Steel Gate Valve
Bonney Forge Features
- Best-in-Class CV values
- Very long service life
- Bubble tight shut off
- Spiral wound gasket
- Oval ring joint gasket
Forged Steel Other Product
Detail Specification
| Size Range | NPS 1/4" - 2" " |
| Pressure Rating | ASME 800 TO ASME 4500 |
| Material | Forged Steel, other materials available |
| End | Socket Weld, Butt Weld |
Bonney Forge API 602 Forged
Steel Valve
Forged Steel Gate Valve
Bonney Forge Features
- Best-in-Class CV values
- Very long service life
- Bubble tight shut off
- Spiral wound gasket
- Oval ring joint gasket
Forged Steel Other Product
Detail Specification
| Size Range | NPS 1/4" - 2" " |
| Pressure Rating | ASME 800 TO ASME 4500 |
| Material | Forged Steel, other materials available |
| End | Socket Weld, Butt Weld |
Bonney Forge gate valve are primarily designed for on-off services when a straight-line flow of fluid and minimum restriction is desired.
Bonney Forge valves are available in two bonnet designs. The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F316L/graphite. Ring joint gasket are also available on request. The second design is the welded bonnet, with a threaded and seal welded joint. On request a full penetration strength welded joint is available.
The handwheel is forged carbon steel of an open spoke design. This robust construction along with appropriate sizing allows for ease operation.
Bonney Forge API 602
Forged Steel Valve
“T”-Pattern Globe Valve
Bonney Forge Features
- Low operation torque design
- Lose solid disc
- Integral backseat
Forged Ball Valve Product
Cast Steel Valve Product
Detail Specification
| Size Range | 1/4" - 2" |
| Pressure Rating | ASME 800 TO ASME 4500 |
| Material | Forged Steel, other materials available |
| End | Socket Weld, Screwed Ends, Butt Welding |
Bonney Forge API 602 Forged Steel Valve
“T”-Pattern Globe Valve
Bonney Forge Features
- Low operation torque design
- Lose solid disc
- Integral backseat
Forged Ball Valve Product
Cast Steel Valve Product
Detail Specification
| Size Range | 1/4" - 2" |
| Pressure Rating | ASME 800 TO ASME 4500 |
| Material | Forged Steel, other materials available |
| End | Socket Weld, Screwed Ends, Butt Welding |
Bonney Forge globe valves are used for flow regulation, frequent operation, increased flow resistance or for positive shut off when closed.
Bonney Forge valves are available in two bonnet designs. The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F316L/graphite. Ring joint gasket are also available on request. The second design is the welded bonnet, with a threaded and seal welded joint. On request a full penetration welded joint is available.
The handwheel is forged carbon steel of an open spoke design. This robust construction along with appropriate sizing allows for ease operation.
